Lamp, Backup: Removal: Lamp

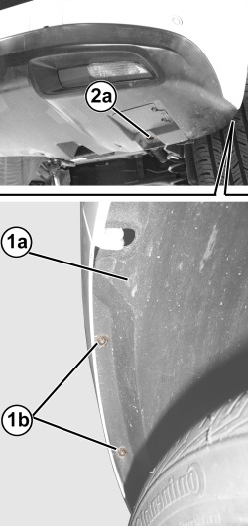

GC0184219Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Working from the right rear wheelhouse splash shield (1a) remove the rear fasteners (1b).
  3. Remove the fascia lower holding fastener (2a).
    GC0184317Courtesy of CHRYSLER GROUP, LLC
  4. Slightly lower the lower edge (1a) of the fascia, then disconnect the reverse light (1c) wire harness connector (1b).
  5. Remove the fastener (2a) and remove the reversing light (1c), releasing it from the seat.
