Lamp, Backup: Removal: Bulb

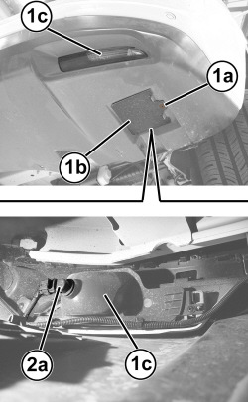

GC0184185Courtesy of CHRYSLER GROUP, LLC
  1. Remove the fastener (1a) and remove cover (1b) positioned under the reverse light (1c).
  2. Using the opening left free from the cover (lb), turn the bulb holder (2a) of the backup light (lc), then pull it out.
    GC0184175Courtesy of CHRYSLER GROUP, LLC
  3. Extract the bulb (1a) from the bulb holder (press fit).
