Module, Park Assist: Removal

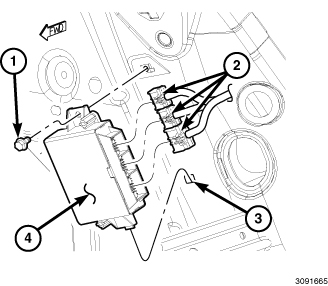

GC0152722Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative cable from the battery.
  2. Remove the trim from the right quarter inner panel to access the Park Assist Module (PAM) (4) located near the base of the inner C-pillar. Refer to PANEL, QUARTER TRIM, REAR, REMOVAL .
  3. Disconnect the two (with rear park assist) or three (with front and rear park assist) body wire harness connectors (2) from the PAM connector receptacles.
  4. Remove the screw (1) that secures the PAM to the right quarter inner panel.
  5. Slide the PAM upward far enough to disengage the lower mounting tab from the stamped pocket (3) in the right quarter inner panel.
  6. Remove the PAM from the vehicle.
