Audio/Video/Entertainment/Connectivity (Service Information) 500 - Except Electric: Amplifier: Removal

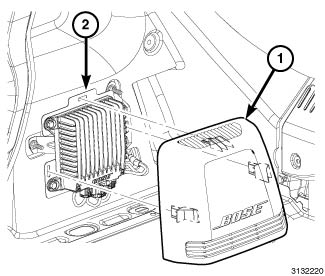

GC0152852Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the amplifier trim cover (1) from the amplifier mounting bracket (2).

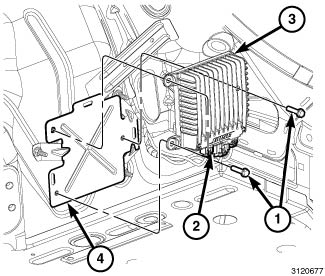

    GC0152798Courtesy of CHRYSLER GROUP, LLC
  3. Remove the amplifier (3) to mounting bracket (4) retainers (1).
  4. Disconnect the amplifier electrical connectors (2).
  5. Remove the amplifier from the vehicle (3).
