Valve-Turbocharger Surge (Standard) Connector End View (D27A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 13783847

Part Description: Not Available

Connector No: D27A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

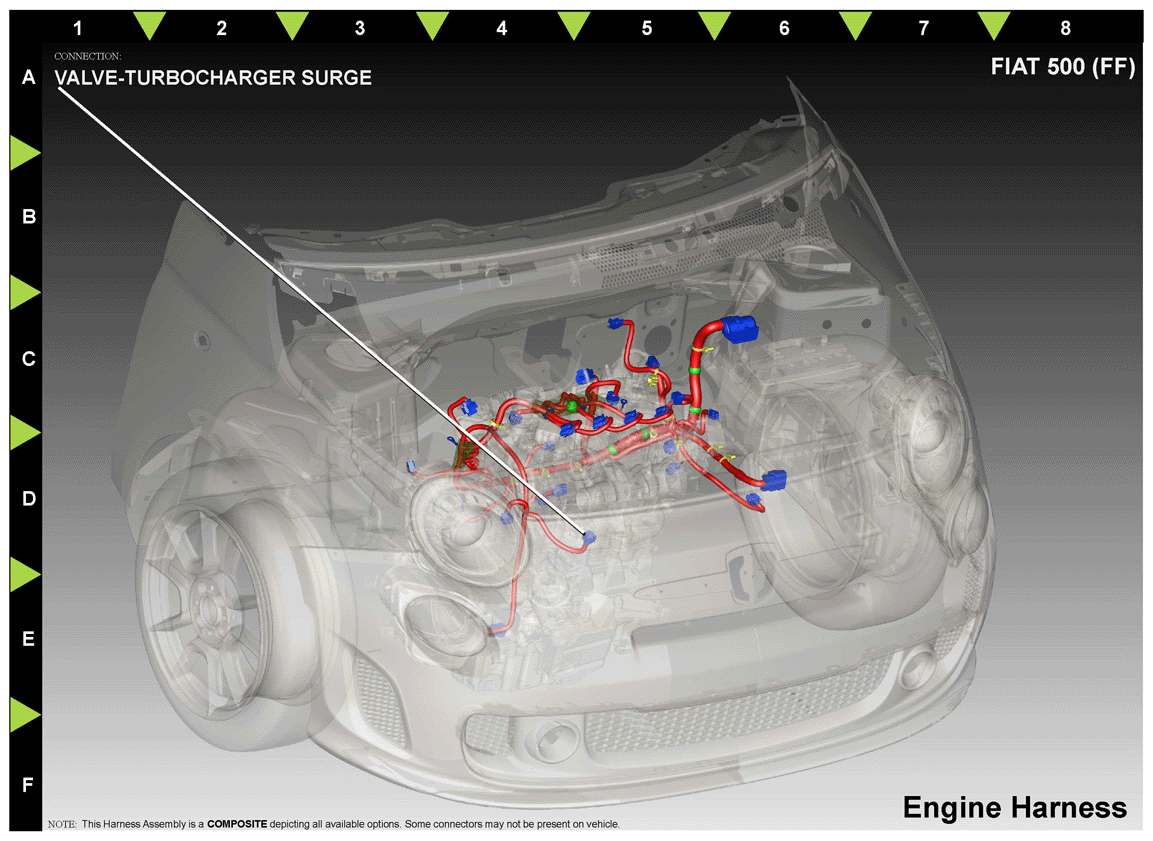

Fig 1: Valve-Turbocharger Surge Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K150

0.50

TURBOCHARGER SURGE VALVE CONTROL

N/A

F344

DB/GN

0.50

FUSED ASD RELAY OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
