Solenoid-Gear Valve 1 (Standard) Connector End View (D2878A)

Harness-Family: Trans_Jmpr

Color: null

Gender: MALE

Part Number: null

Part Description: Not Available

Connector No: D2878A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

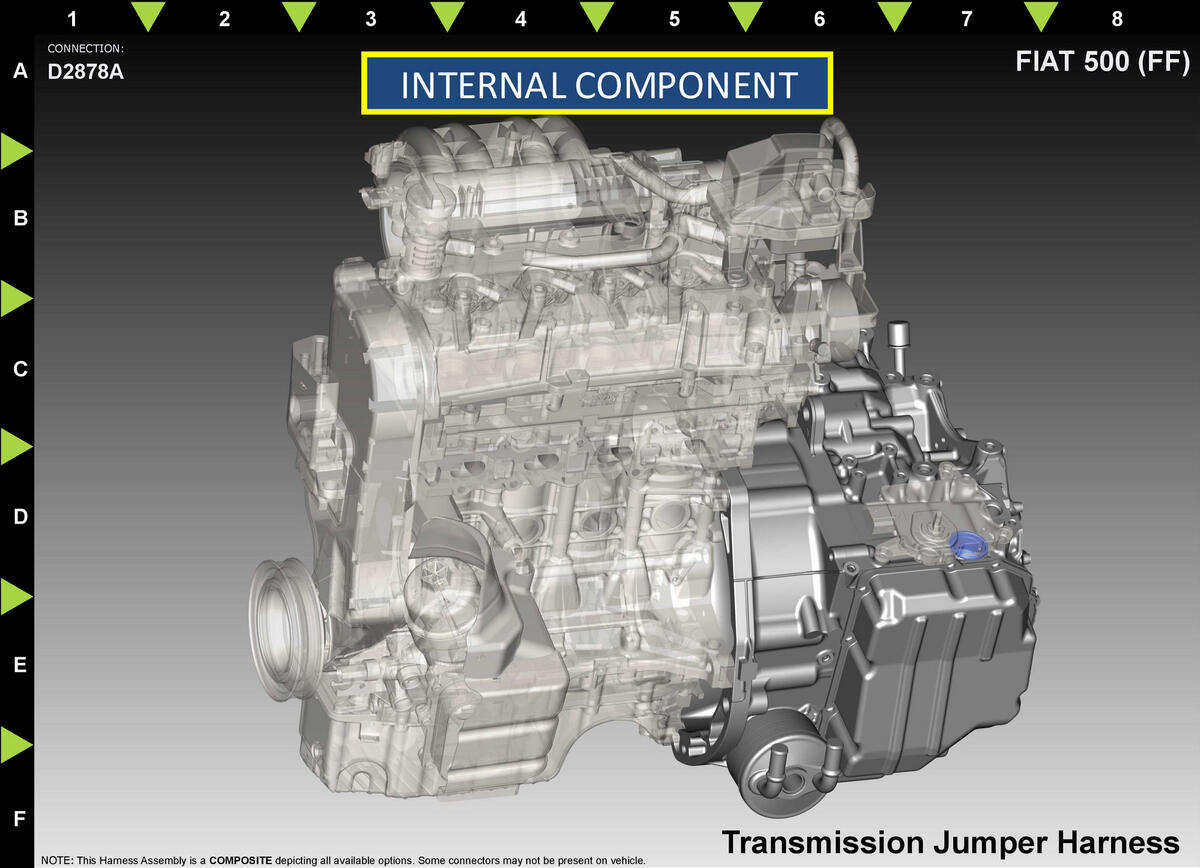

Fig 1: Solenoid-Gear Valve 1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T493

0.35

SHAFT 1 SOL RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
