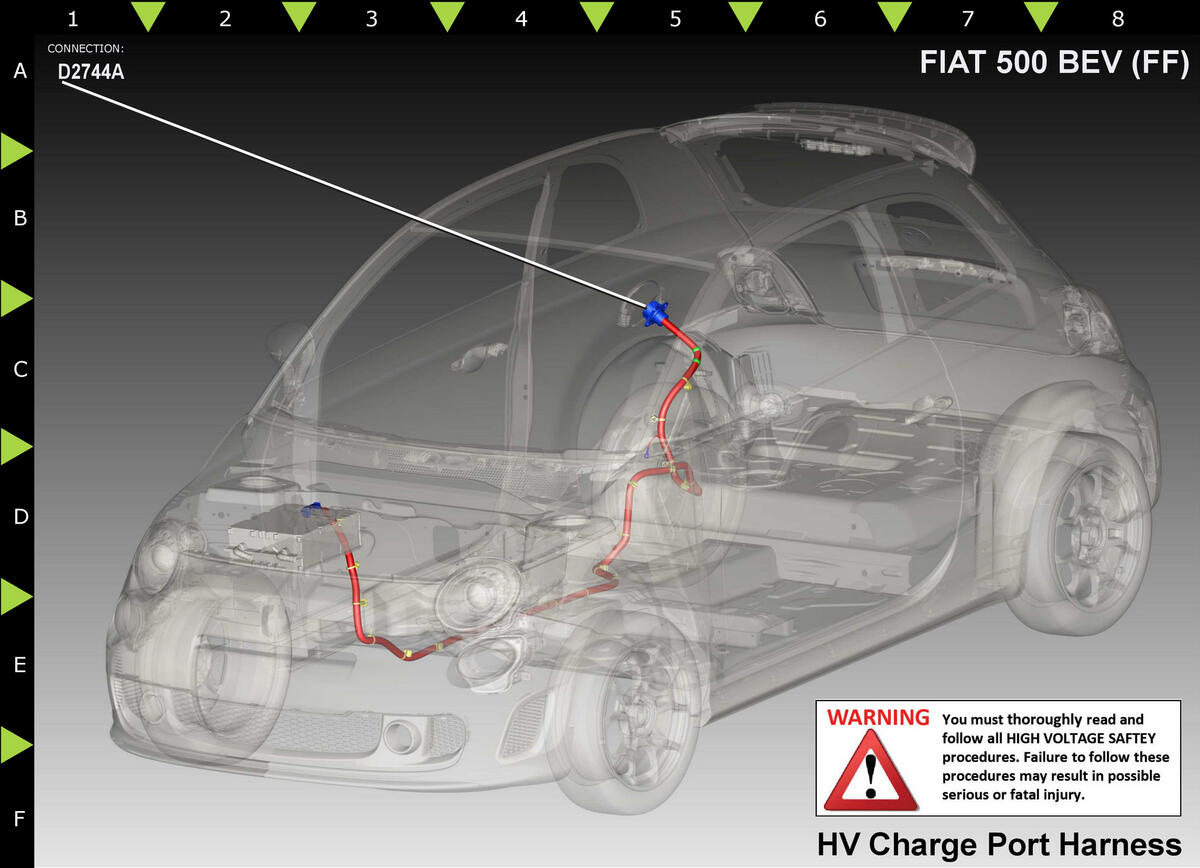

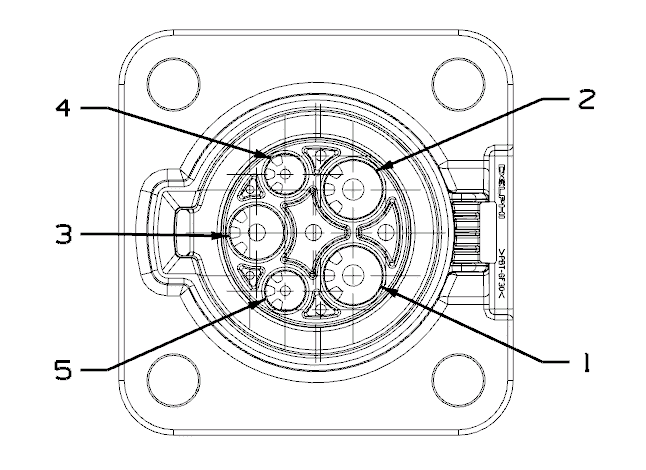

Port-Electric Vehicle Charging (Standard) Connector End View (D2744A)
Harness-Family: HV_Cable3
Color: ORANGE
Gender: MALE
Part Number: 13890000
Part Description: Not Available
Connector No: D2744A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | H324 | OG | 5.0 | CHARGING PORT AC LINE 1 | N/A | ||
| 2 | H325 | OG/WH | 5.0 | CHARGING PORT AC LINE 2 | N/A | ||
| 3 | H326 | BK | 5.0 | CHARGING PORT GROUND | N/A | ||
| 4 | H329 | DB/BN | 0.75 | CHARGING PORT CONTROL PILOT SIGNAL | N/A | ||
| 5 | H328 | DB/GN | 0.75 | CHARGING PORT PROXIMITY DETECTION SIGNAL | N/A | ||
|
|||||||
