G102A (Standard) Connector End View (G102A)

Harness-Family: Battery_Negative

Color: NA

Gender: FEMALE

Part Number: 12146365

Part Description: Not Available

Connector No: G102A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G102a Connector End View (Standard)

Courtesy of CHRYSLER

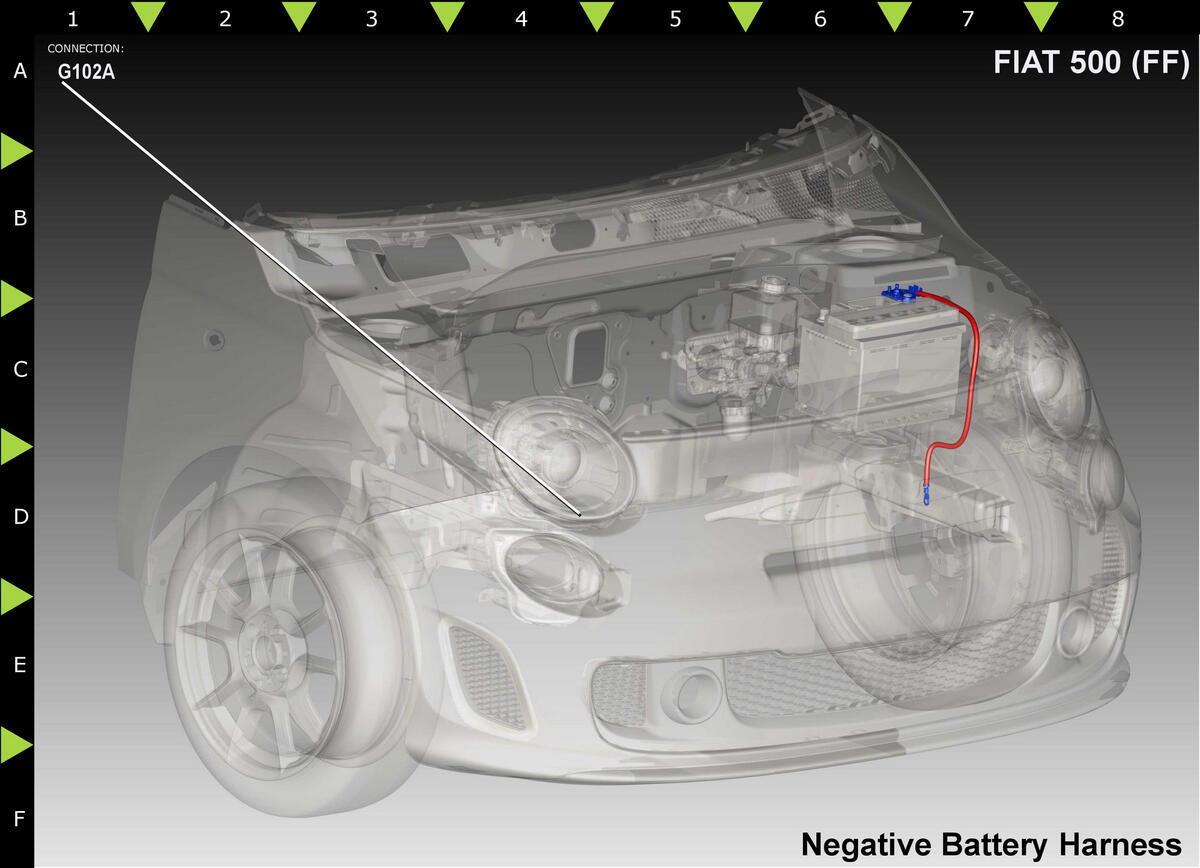

Fig 2: G102a Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

16.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
