G029 (Standard) Connector End View (G029)

Harness-Family: Body_Front

Color: NA

Gender: FEMALE

Part Number: 15363919

Part Description: Not Available

Connector No: G029

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G029 Connector End View (Standard)

Courtesy of CHRYSLER

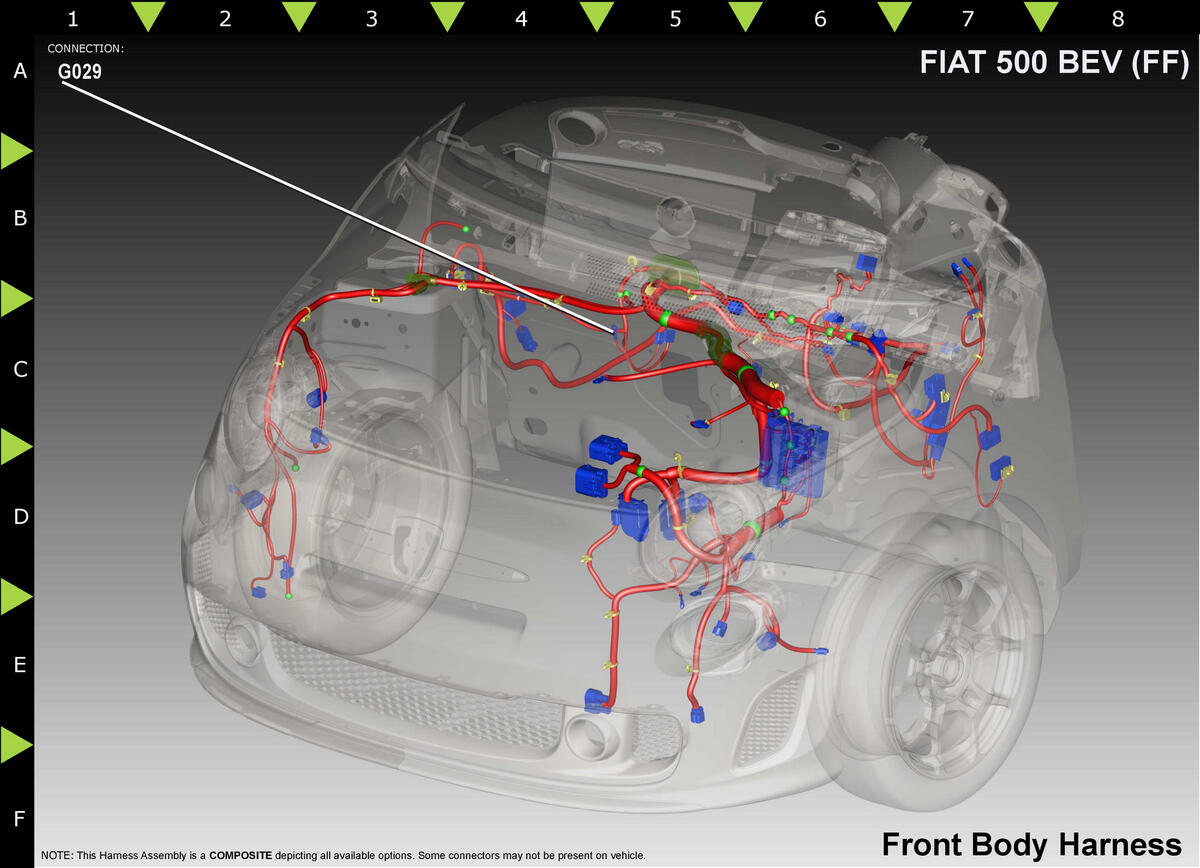

Fig 2: G029 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z929

5.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
