Airbag-Side Thorax-Right (Standard) Connector End View (D6680)

Harness-Family: Side_Airbag_RT

Color: BLACK

Gender: FEMALE

Part Number: PP10001142

Part Description: Not Available

Connector No: D6680

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Airbag-Side Thorax-Right Connector End View (Standard)

Courtesy of CHRYSLER

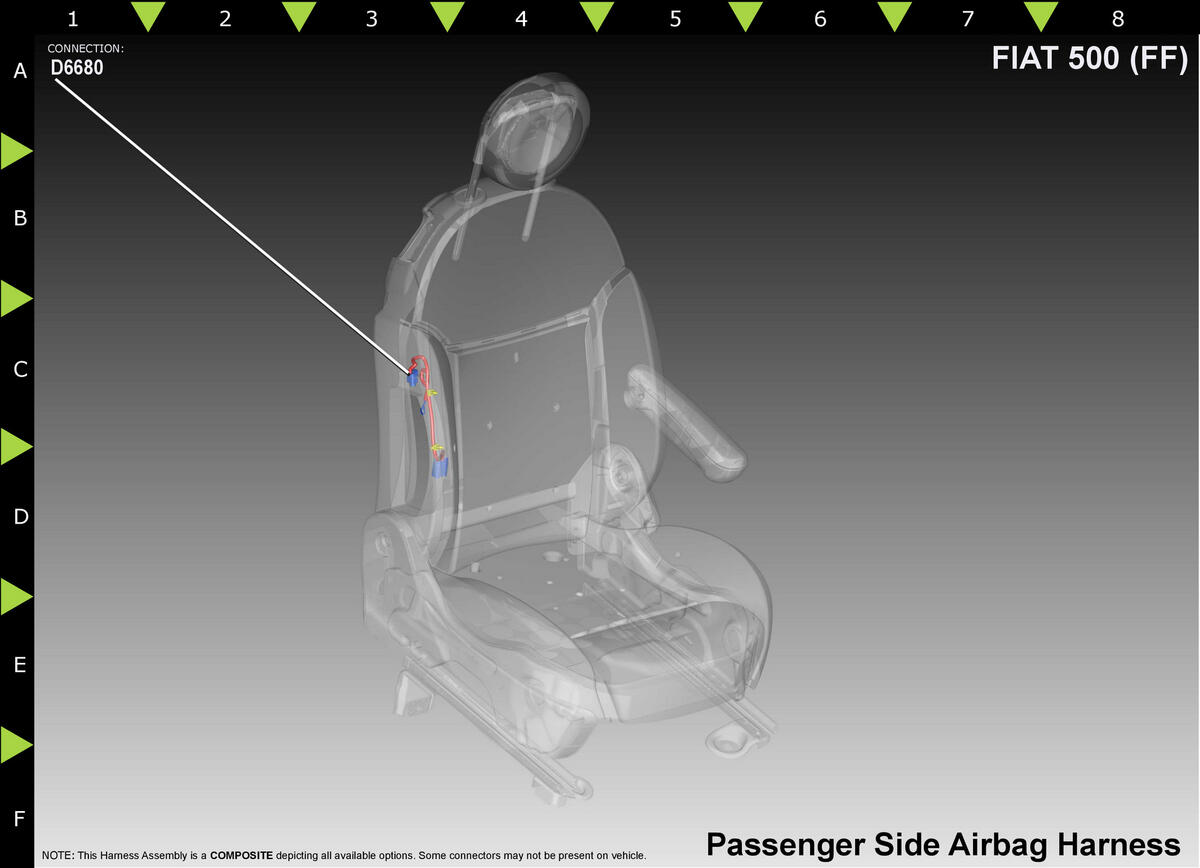

Fig 2: Airbag-Side Thorax-Right Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

0.50

RIGHT SEAT THORAX SQUIB 1 LINE 2

N/A

OG/BK

0.50

RIGHT SEAT THORAX SQUIB 1 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
