Airbag-Passenger Squib C1 (Standard) Connector End View (D6665A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 15332140

Part Description: Not Available

Connector No: D6665A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Airbag-Passenger Squib C1 Connector End View (Standard)

Courtesy of CHRYSLER

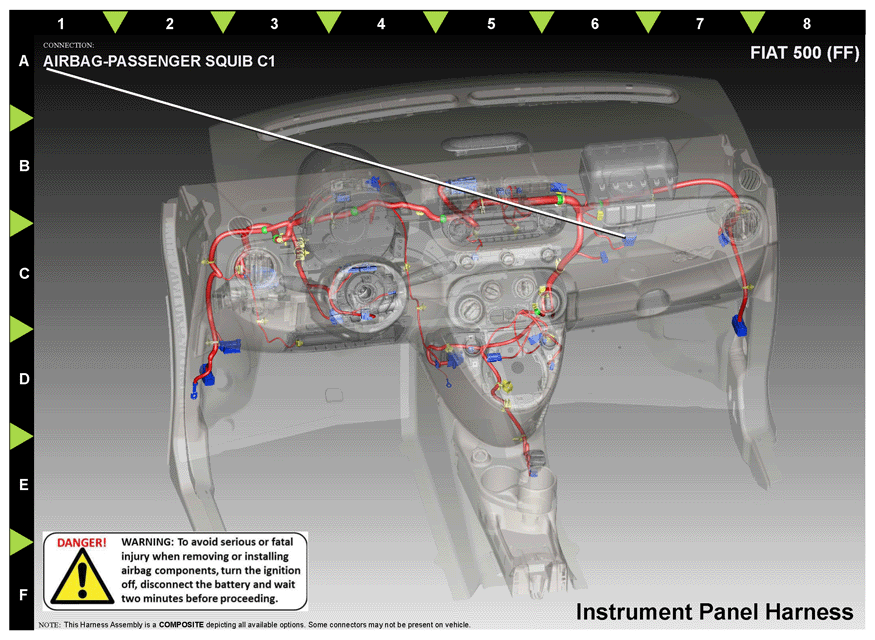

Fig 2: Airbag-Passenger Squib C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R42

0.50

PASSENGER SQUIB 1 LINE 2

N/A

R44

OG/BK

0.50

PASSENGER SQUIB 1 LINE 1

N/A

R62

WH/DB

0.50

PASSENGER SQUIB 2 LINE 2

N/A

R64

WH/BK

0.50

PASSENGER SQUIB 2 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
