Seat Belt-PRETENSIONER (Anchor)-Passenger (Standard) Connector End View (D2804A)

Harness-Family: Body_Rear

Color: LIGHT GREEN

Gender: FEMALE

Part Number: 13966983

Part Description: Not Available

Connector No: D2804A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

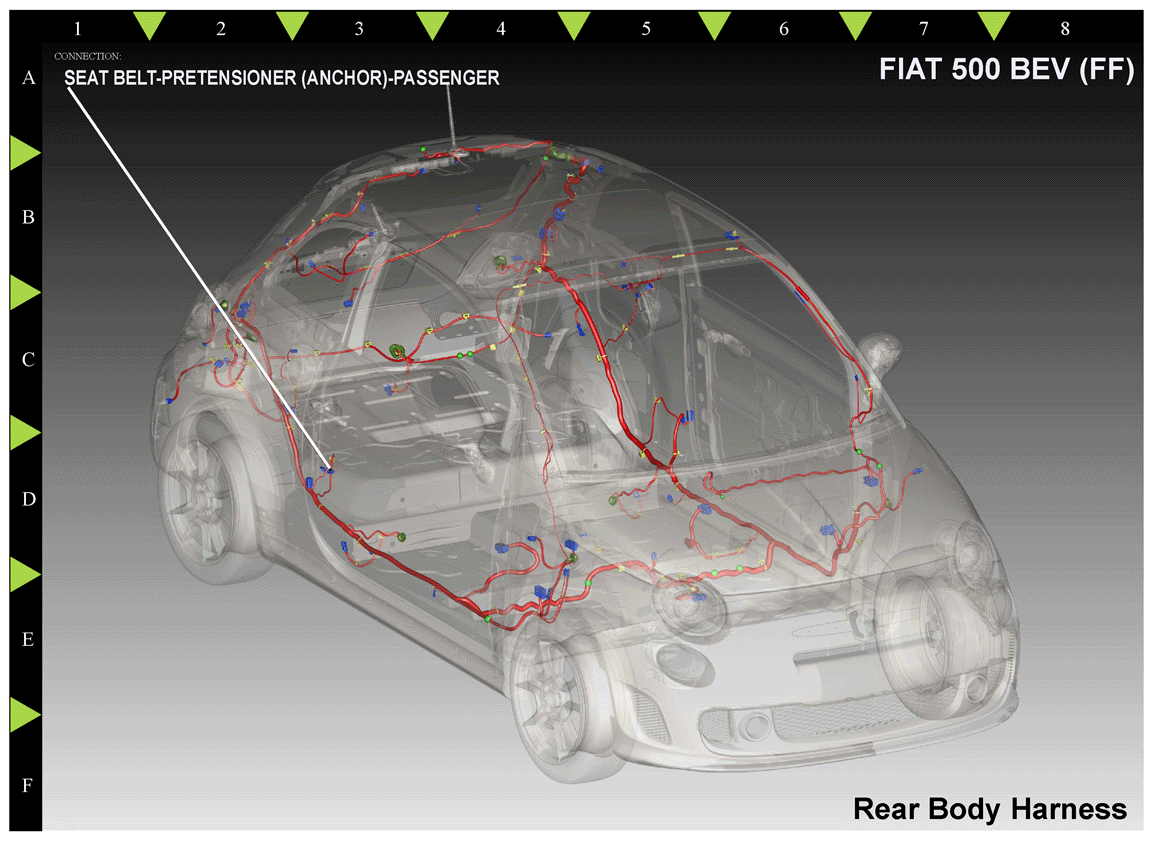

Fig 1: Seat Belt-Pretensioner (anchor)-Passenger Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R504

0.50

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R506

0.50

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
