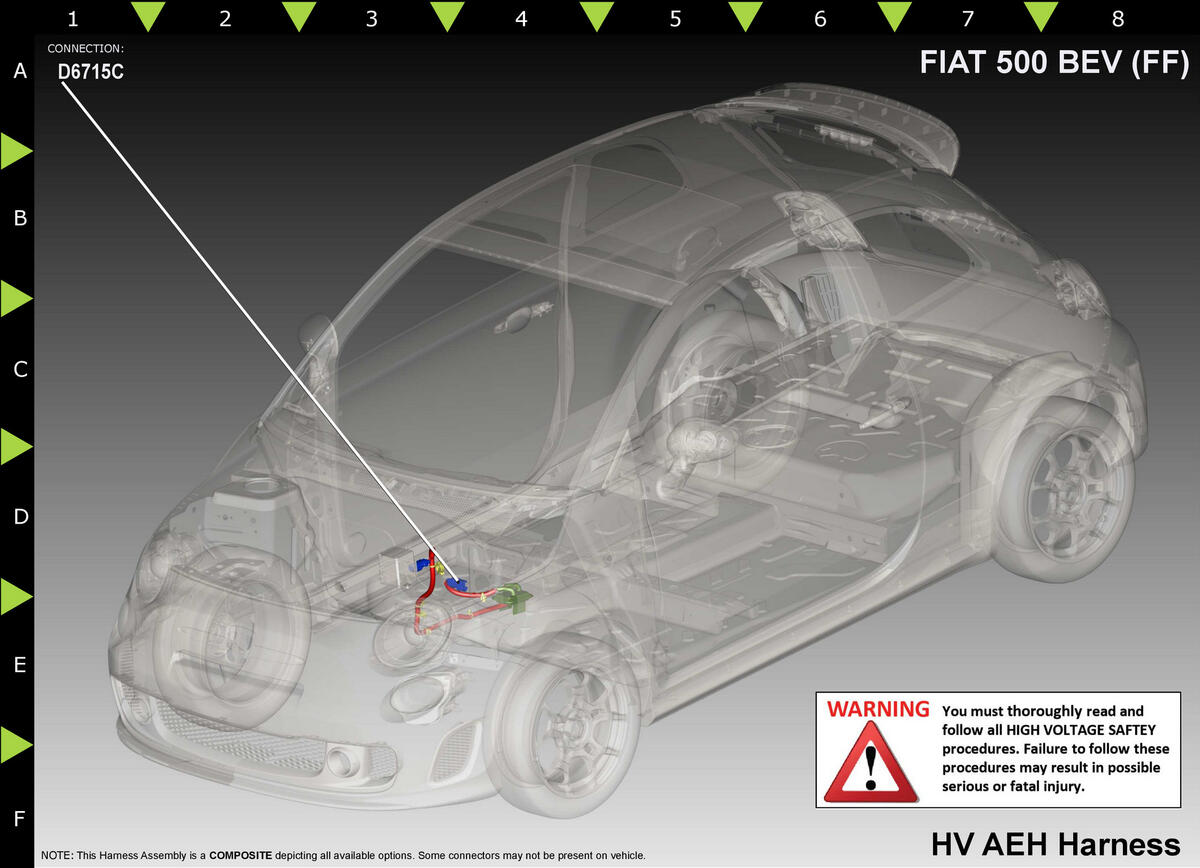

Electric Air Heater C3 (Standard) Connector End View (D6715C)
Harness-Family: HV_Cable5
Color: ORANGE
Gender: FEMALE
Part Number: 13861584
Part Description: Not Available
Connector No: D6715C
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| A | H300 | OG | 5.0 | HIGH VOLTAGE DC 300V (+) | N/A | ||
| B | H301 | OG/BK | 5.0 | HIGH VOLTAGE DC 300V (-) | N/A | ||
|
|||||||
