Electric Air Heater C2 (Standard) Connector End View (D6715B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 13738743

Part Description: Not Available

Connector No: D6715B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Electric Air Heater C2 Connector End View (Standard)

Courtesy of CHRYSLER

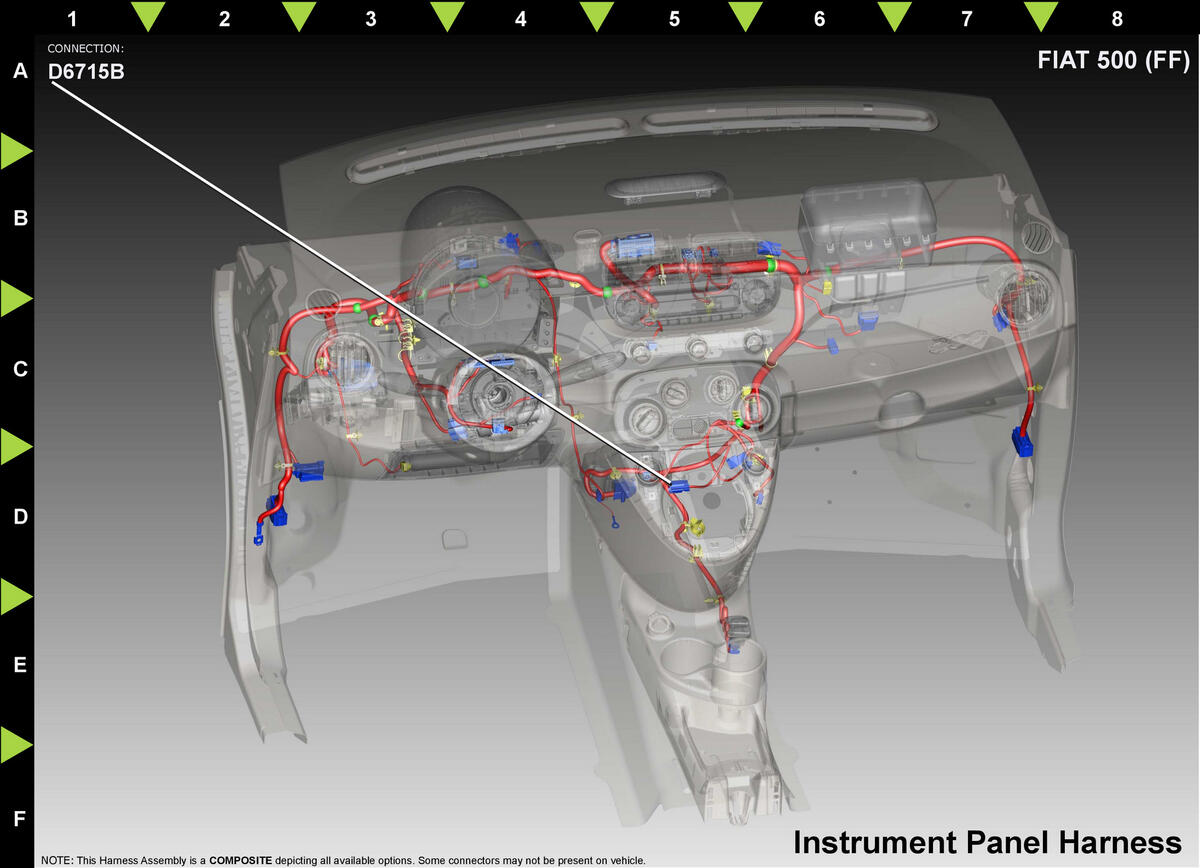

Fig 2: Electric Air Heater C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T342

BN/OG

0.50

HIGH VOLTAGE INTERLOCK SAFETY LOOP 8

N/A

T344

BN/OG

0.50

HIGH VOLTAGE INTERLOCK SAFETY LOOP 6

N/A

⁽¹⁾	Pins not listed are not used for this connector
