Antenna, Satellite: Installation: Convertible

Courtesy of CHRYSLER GROUP, LLC

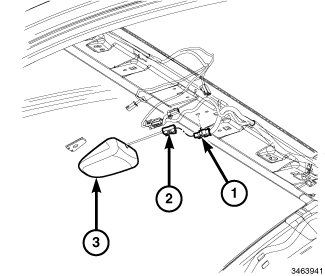

1. Reinstall the antenna module (3).
2. Reconnect the antenna connector (2) to the body side antenna connector (1).

   Courtesy of CHRYSLER GROUP, LLC

3. Reinstall the front header trim panel (1). Refer to COVER, HEADER, INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

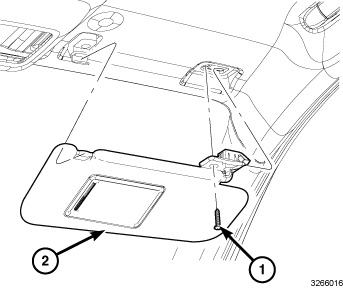

4. Reinstall both sun visors (2). Refer to VISOR, INSTALLATION .
5. Reconnect the battery negative cable.
6. Verify operation outside with a clear line of sight not obstructed by trees or buildings.
