B10AE-19-Right Parking Lamp - Over Current: Notes

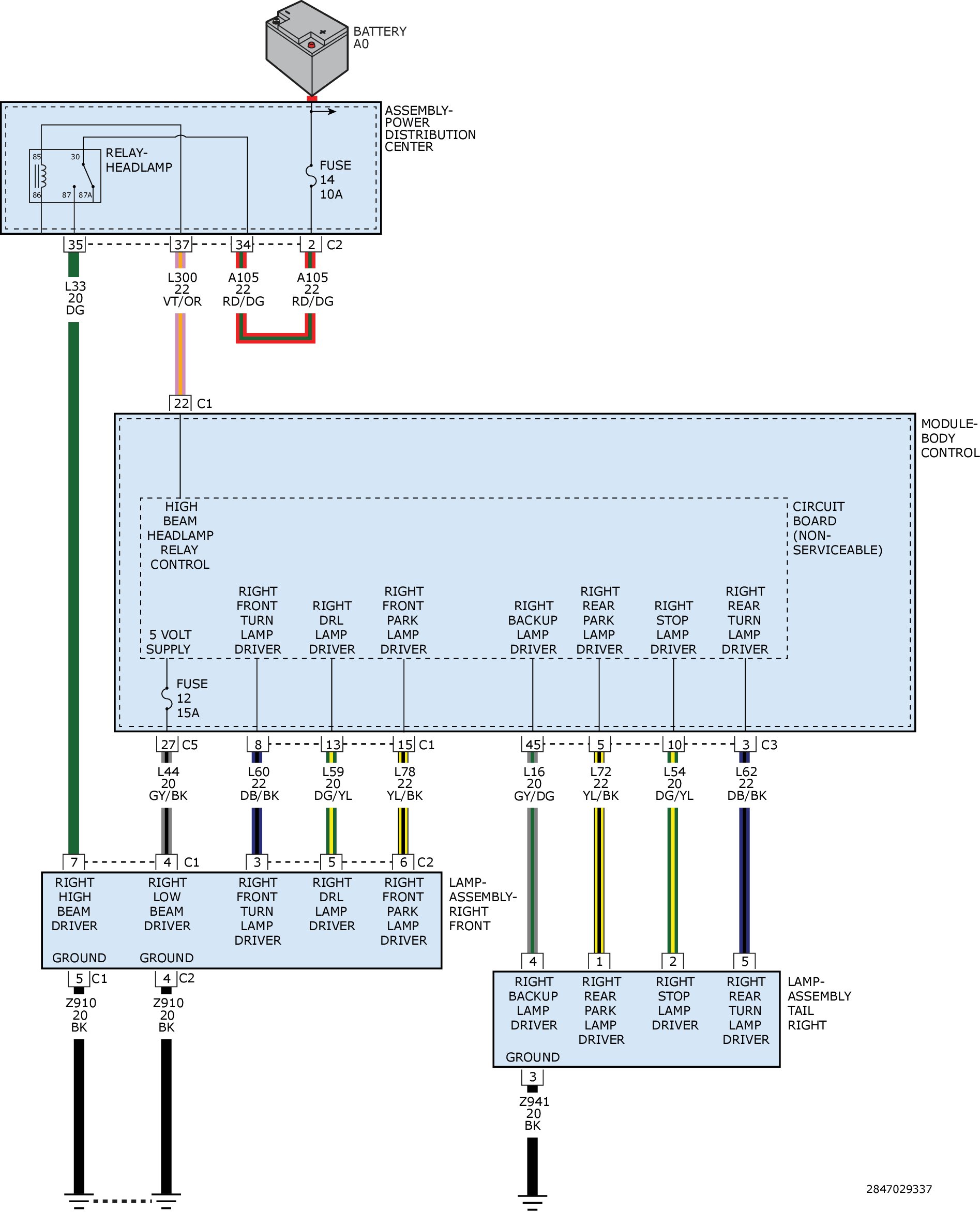

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

GC0161174

Courtesy of CHRYSLER GROUP, LLC
