Body - Interior & Exterior: Interior: Visor: Removal

Courtesy of CHRYSLER GROUP, LLC

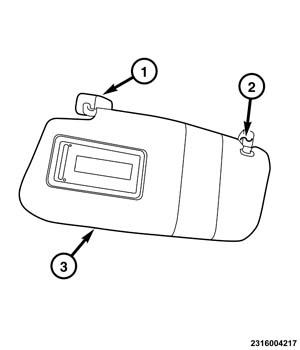

1. Unclip the sun visor (3) from the visor support (2).
2. With the use of a small flat bladed tool or equivalent, remove the sun visor fastener cover (1).
3. Remove the fastener from the visor base.
4. Remove the sun visor, releasing the inner retainer.
5. If equipped, disconnect the illuminated vanity mirror wire harness connector.
