Panel, B-Pillar Trim, Upper: Removal

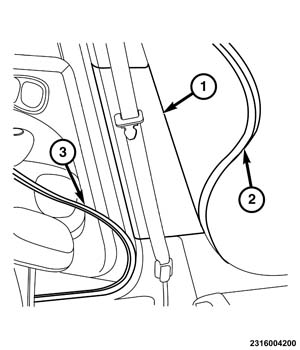

GC0158855Courtesy of CHRYSLER GROUP, LLC
  1. Remove the lower B-pillar trim (1). Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL .
  2. Partially remove the door opening weatherstrips in the upper B-pillar area.

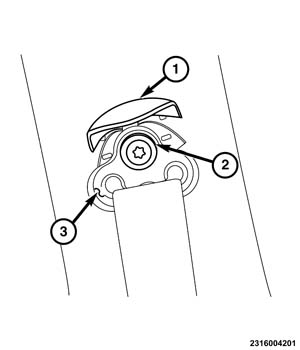

    GC0158756Courtesy of CHRYSLER GROUP, LLC
  3. Open the seat belt turning loop cover (1).
  4. Remove the seat belt turning loop fastener (2).
  5. Remove the seat belt turning loop (3).

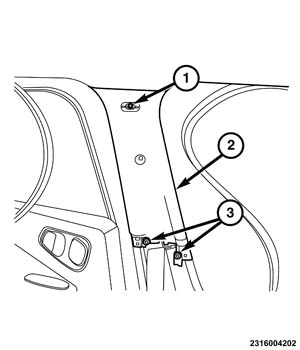

    GC0159021Courtesy of CHRYSLER GROUP, LLC
  6. Remove the lower retainers (3).
  7. Remove the top fastener cover.
  8. Remove the fastener (1).
  9. Remove the upper B-pillar trim (2) from the vehicle.
