Molding, Door Belt, Outer: Removal

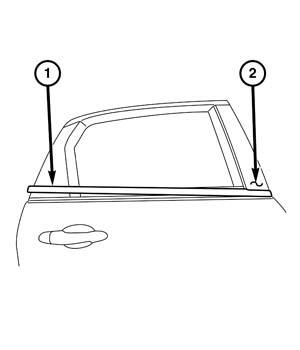

GC0158875Courtesy of CHRYSLER GROUP, LLC
  1. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, starting at the rear of the door, and carefully lift the belt molding (1) upward and disengage the inner portion of the molding from the flange on the door
  2. Remove the belt molding (1) from the door.
