Integrated Control Unit (ICU): Disassembly

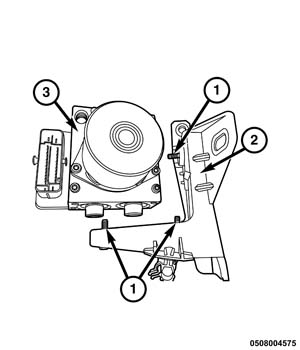

Courtesy of CHRYSLER GROUP, LLC

1 - MOUNTING BOLT

2 - MOUNTING BRACKET

3 - ICU

1. If the mounting bracket (2) needs to be removed from the ICU, remove the mounting bolts (3), then separate the ICU (3) from the bracket (2).

   Courtesy of CHRYSLER GROUP, LLC

   1 - MOUNTING SCREWS

   2 - ABM

2. Remove the four screws (1) attaching the ABM (2) to the HCU.

   Courtesy of CHRYSLER GROUP, LLC

   1 - ABM

   2 - HCU

   3 - SOLENOID VALVE STEM

3. Separate the ABM (1) from the HCU (2).
