Switch, Remote Radio: Installation

NOTE:

Check that the radio remote switch is not damaged.

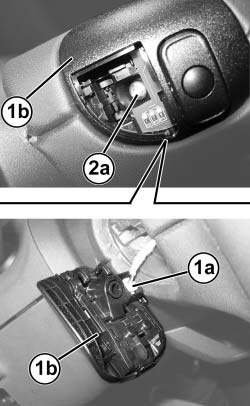

GC0184233Courtesy of CHRYSLER GROUP, LLC
  1. Connect electrical connector (1a).
  2. Install and securely tighten the screw (2a) for the remote radio switch (1b) to the steering wheel.
    GC0184286Courtesy of CHRYSLER GROUP, LLC
  3. Install the remote radio switch cover (1). Be certain that the cover is snapped securely into place.
  4. Install negative battery cable.
