Lamp, Center High Mounted Stop: Installation

Courtesy of CHRYSLER GROUP, LLC

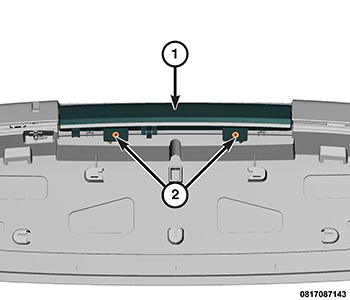

1. Position the Center High Mounted Stop Lamp (CHSML) (1) to the liftgate spoiler.
2. Install the two fasteners securing the CHSML (2) to the spoiler and tighten securely

   Courtesy of CHRYSLER GROUP, LLC

3. Install the liftgate spoiler. Refer to SPOILER, INSTALLATION .
4. Connect the negative battery cable.
