Switch-Seat Heater-Passenger (Standard) Connector End View (D2287A)

Harness-Family: Seat_Right

Color: WHITE

Gender: FEMALE

Part Number: 1/24583/80

Part Description: Not Available

Connector No: D2287A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Switch-Seat Heater-Passenger Connector End View (Standard)

Courtesy of CHRYSLER

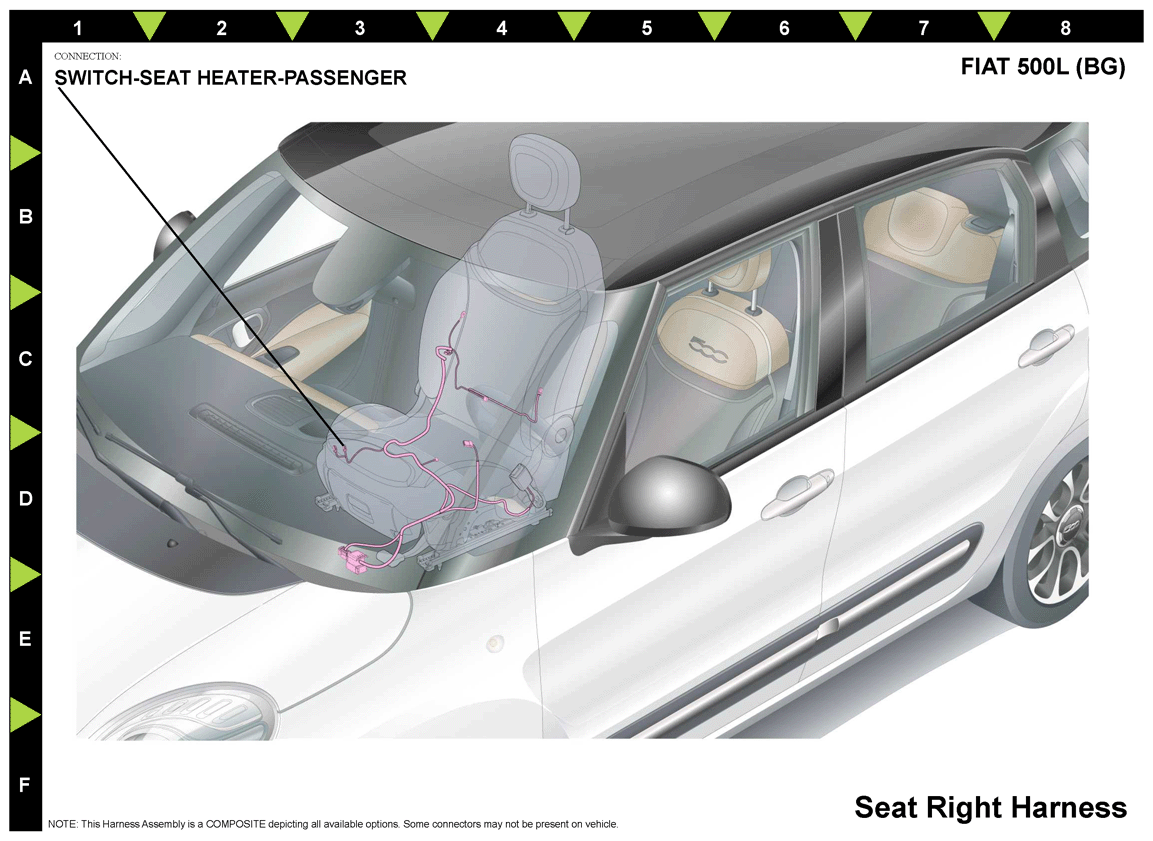

Fig 2: Switch-Seat Heater-Passenger Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P693

1.0

HEATED SEAT MODULE SUPPLY

N/A

F921

0.35

FUSED IGNITION RUN CONTROL OUTPUT

N/A

Z941

1.0

GROUND

N/A

P188

YE/BK

1.0

RIGHT FRONT SEAT HEATER CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
