Switch-Seat Belt Buckle-Passenger (Standard) Connector End View (D2283A)

Harness-Family: Seat_Right

Color: BLUE

Gender: FEMALE

Part Number: 1/08862/92

Part Description: Not Available

Connector No: D2283A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Switch-Seat Belt Buckle-Passenger Connector End View (Standard)

Courtesy of CHRYSLER

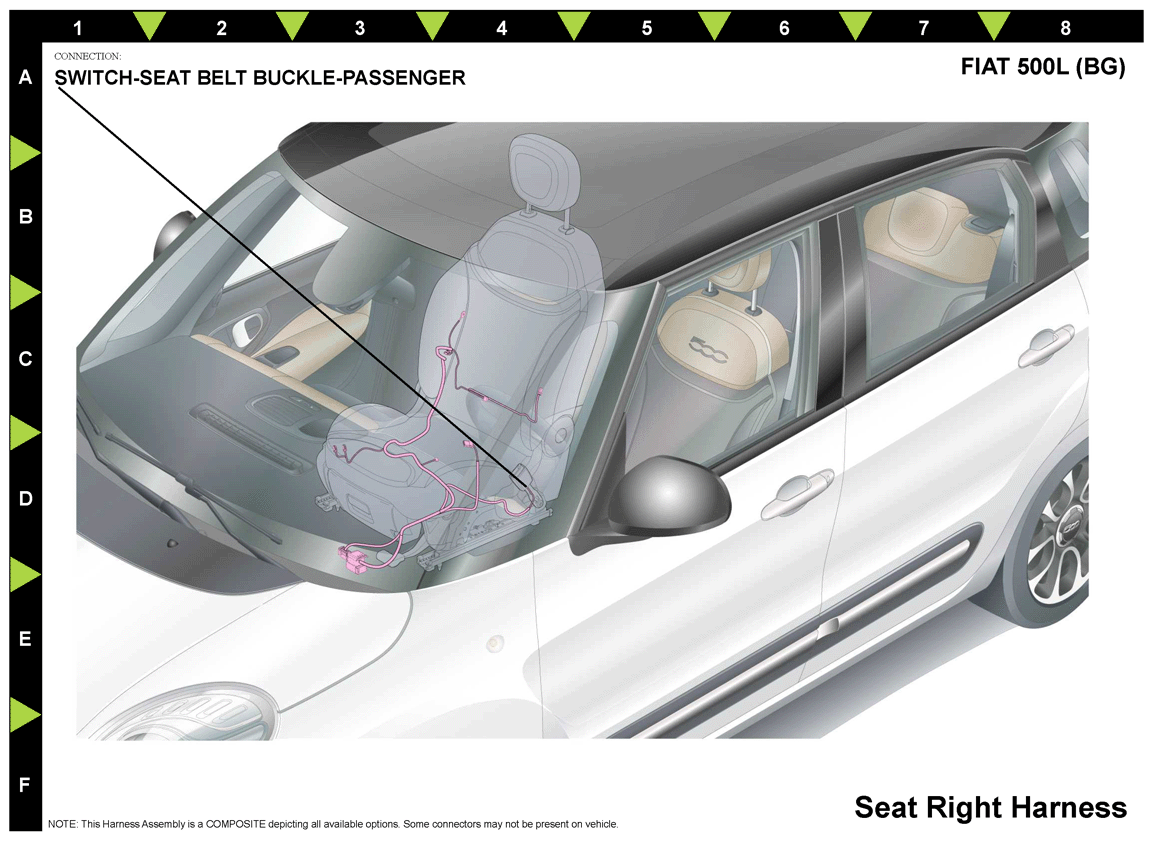

Fig 2: Switch-Seat Belt Buckle-Passenger Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R58

WH/YE

0.35

PASSENGER SEAT BELT SWITCH SENSE

N/A

R261

GN/BN

0.35

DRIVER SEAT POSITION SENSOR DATA

N/A

⁽¹⁾	Pins not listed are not used for this connector
