Switch-Seat Adjuster-Passenger Lumbar (Standard) Connector End View (D2289A)

Harness-Family: Seat_Right

Color: BROWN

Gender: FEMALE

Part Number: 1/23744/89

Part Description: Not Available

Connector No: D2289A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Switch-Seat Adjuster-Passenger Lumbar Connector End View (Standard)

Courtesy of CHRYSLER

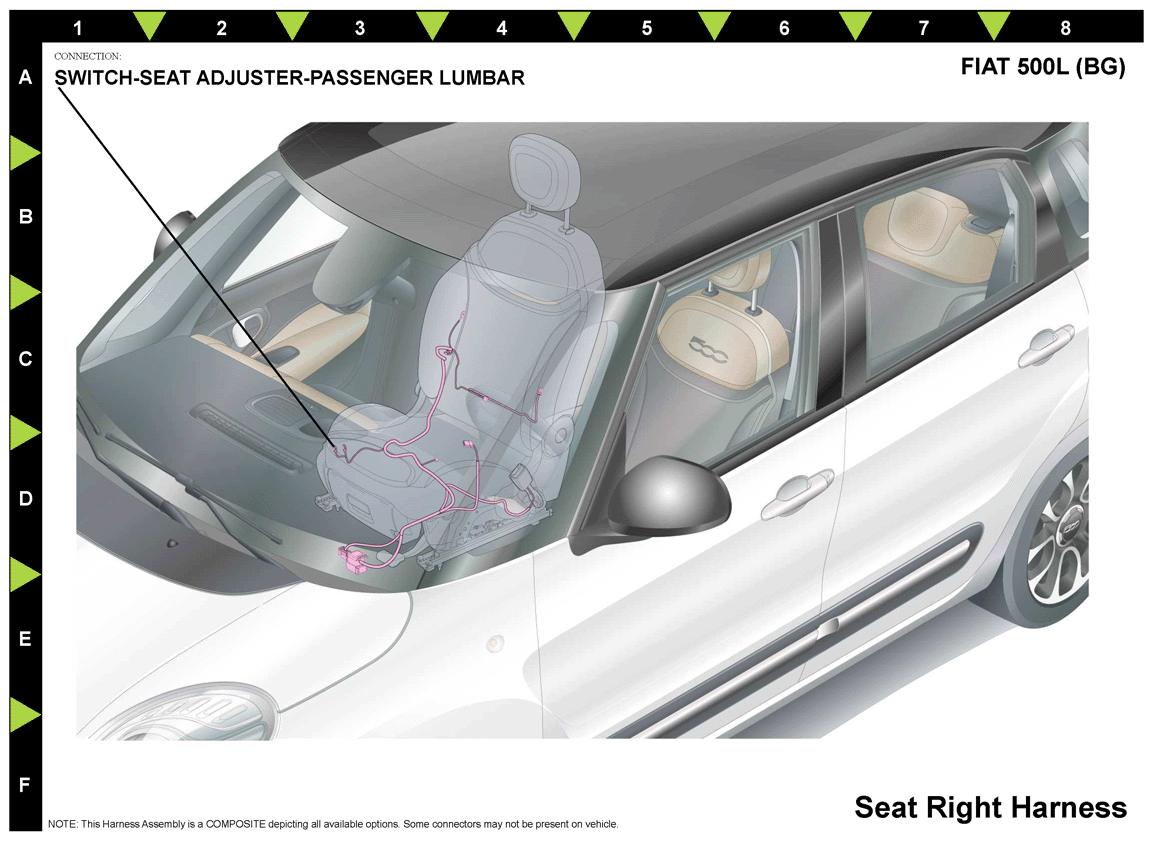

Fig 2: Switch-Seat Adjuster-Passenger Lumbar Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P171

1.0

LUMBAR UPWARD PASS

N/A

P173

1.0

LUMBAR DOWNWARD PASS

N/A

P103

1.0

DRIVER LUMBAR MOTOR DRIVER

N/A

Z941

1.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
