Switch-Horn C1 (Standard) Connector End View (D2246A)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 175019

Part Description: Not Available

Connector No: D2246A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

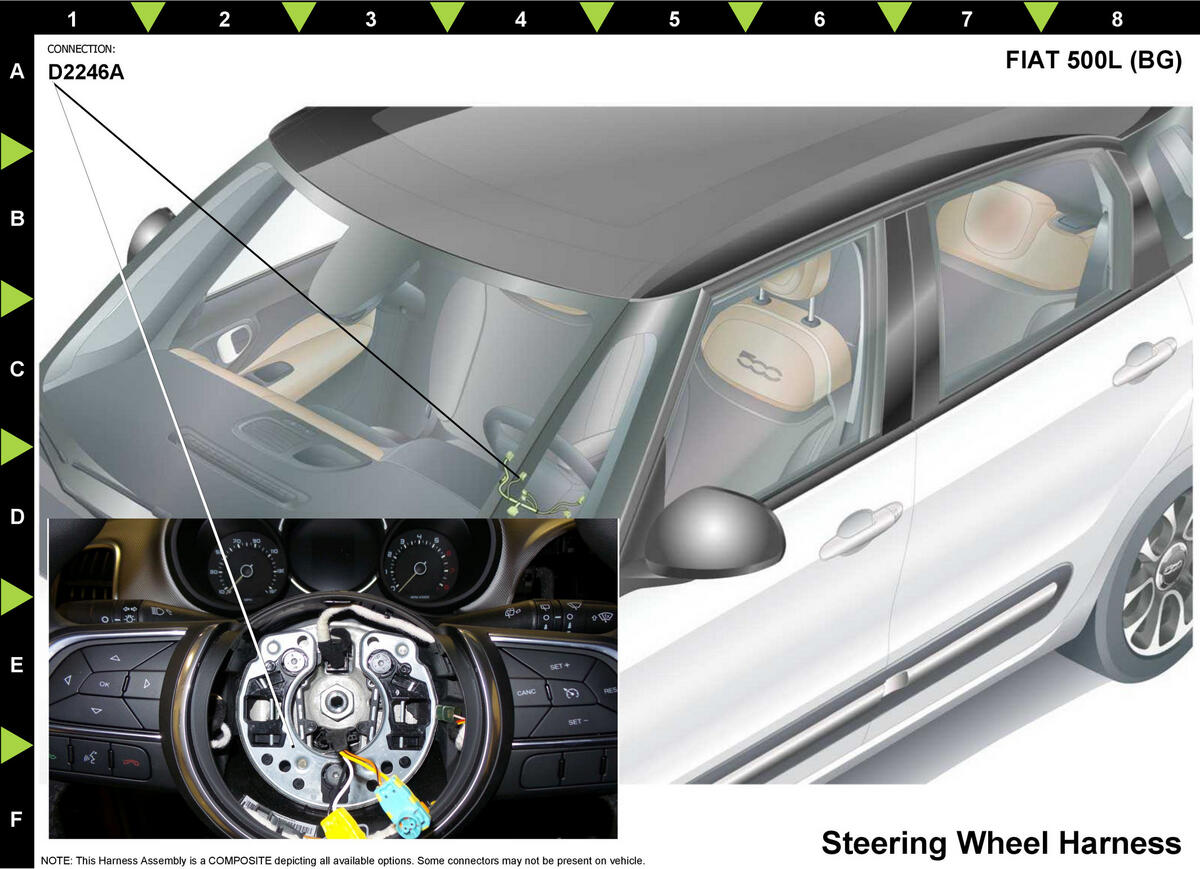

Fig 1: Switch-Horn C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

0.35

HORN SWITCH SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
