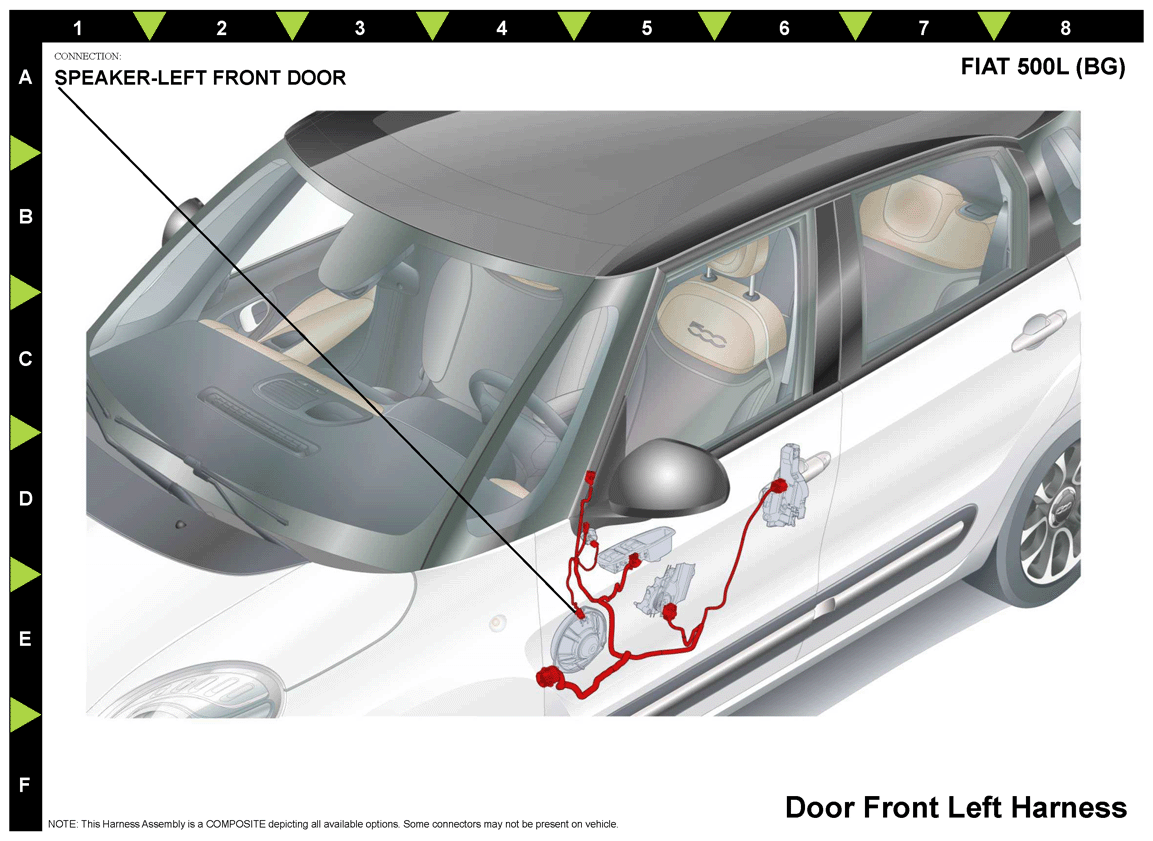

Speaker-Left Front Door (Standard) Connector End View (D5908A)
Harness-Family: Door_Front_Left
Color: BLACK
Gender: FEMALE
Part Number: 1/10275/87
Part Description: Not Available
Connector No: D5908A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | X201 | YE | 0.5 | LEFT FRONT SPEAKER (+) | EXCEPT HI-FI AUDIO | ||
| 1 | X153 | YE | 1.5 | LEFT FRONT DOOR SPEAKER (+) | HI-FI AUDIO | ||
| 2 | X291 | YE/BK | 0.5 | LEFT FRONT SPEAKER (-) | EXCEPT HI-FI AUDIO | ||
| 2 | X155 | YE/BK | 1.5 | LEFT FRONT DOOR SPEAKER (-) | HI-FI AUDIO | ||
|
|||||||
