Solenoid-Camshaft 1/1 Position (Standard) Connector End View (D64A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 1/11712/97

Part Description: Not Available

Connector No: D64A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Solenoid-Camshaft 1/1 Position Connector End View (Standard)

Courtesy of CHRYSLER

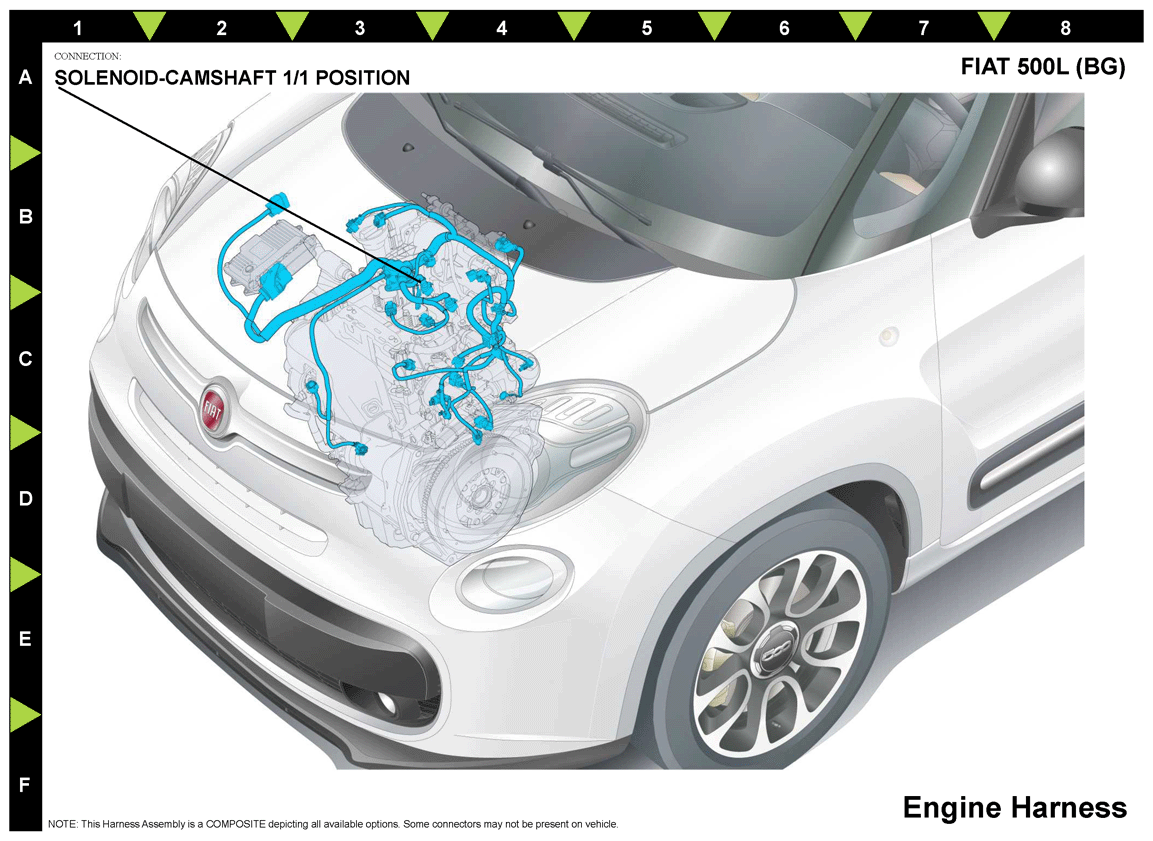

Fig 2: Solenoid-Camshaft 1/1 Position Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N32

WH/RD

1.5

INTAKE AIR SOL 1 RETURN

N/A

N33

1.5

INTAKE AIR SOL 1 CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
