Relay-Seat Heater/Lumbar (Standard) Connector End View (R0006)

Harness-Family: PDC_Rear

Color: NA

Gender: MALE

Part Number: RELAY_MICRO

Part Description: Not Available

Connector No: R0006

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

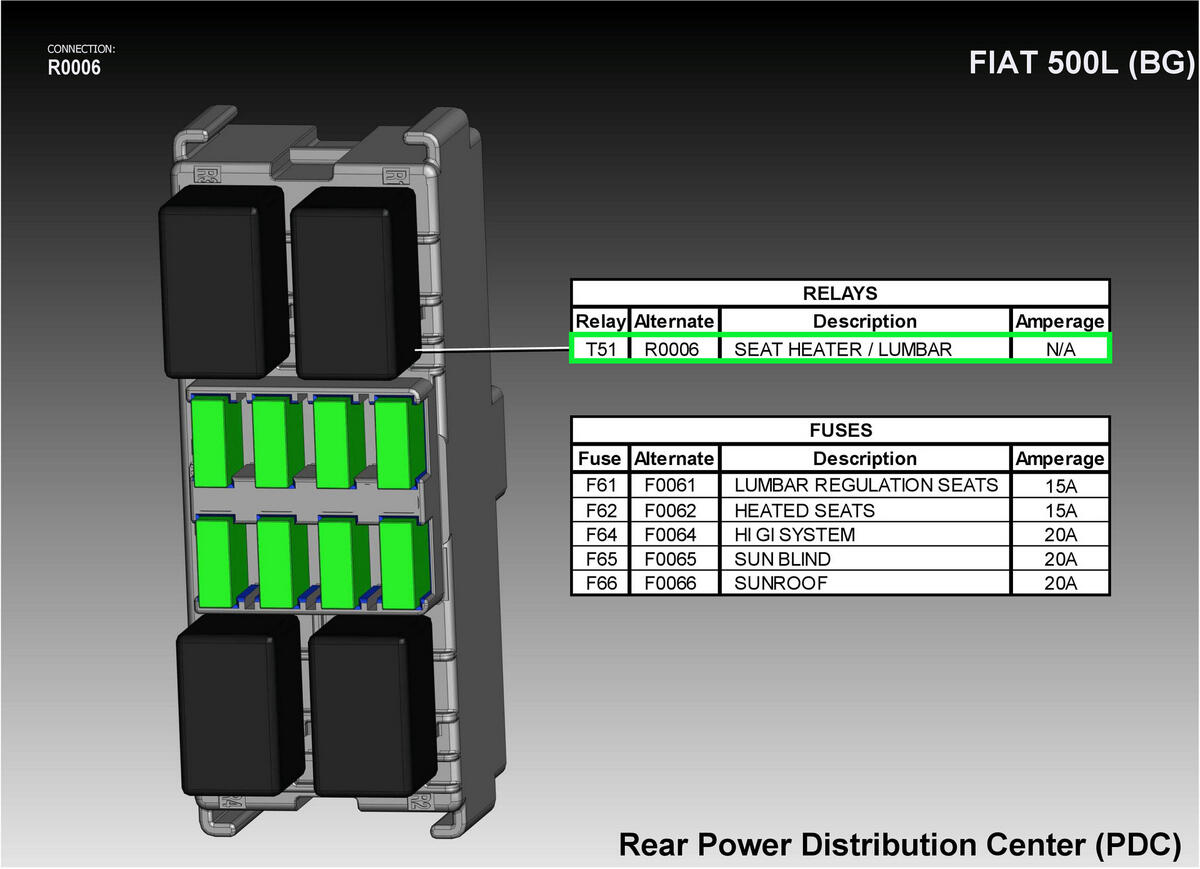

Fig 1: Relay-Seat Heater/lumbar Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Relay-Seat Heater/lumbar Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A953

1.0

FUSED B(+)

N/A

Z912

0.5

GROUND

N/A

F46

0.35

FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT

N/A

A921

1.0

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
