Relay-Cabin Heater 2 (Standard) Connector End View (D806A)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 2-953615-2

Part Description: Not Available

Connector No: D806A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Cabin Heater 2 Connector End View (Standard)

Courtesy of CHRYSLER

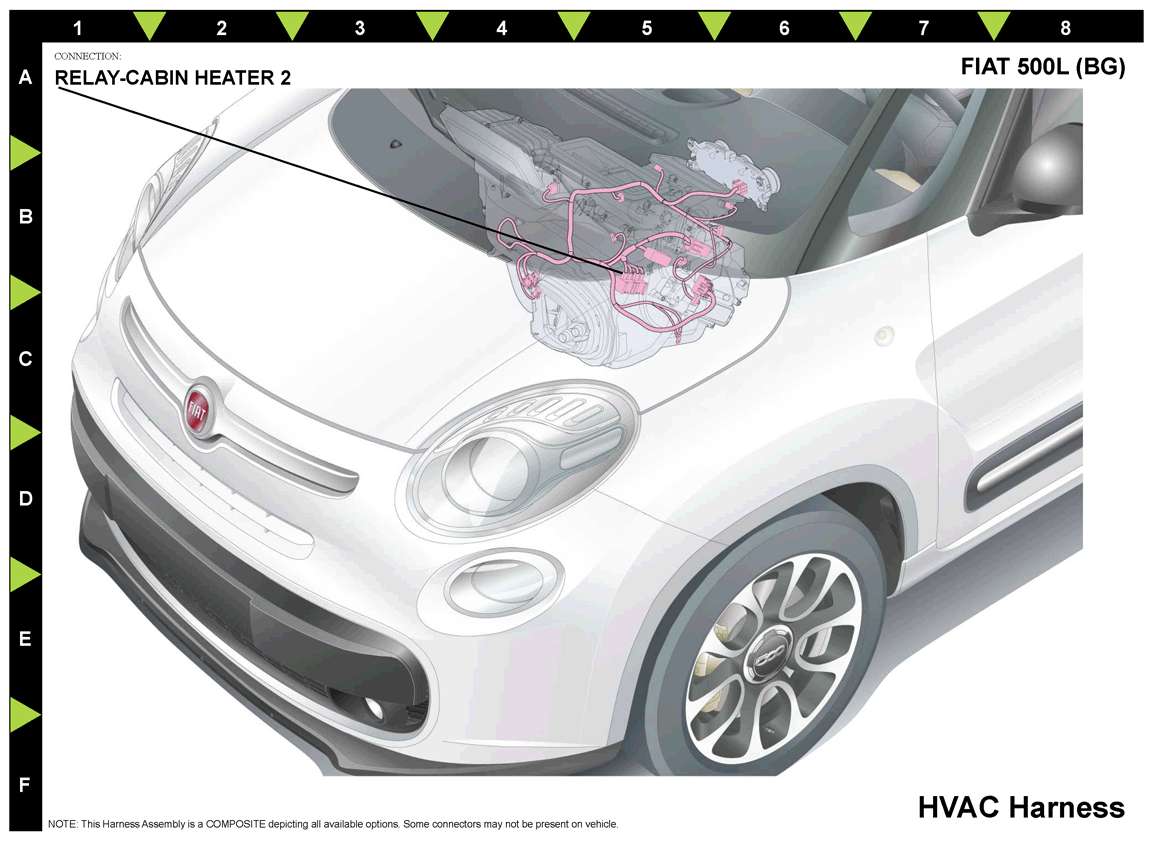

Fig 2: Relay-Cabin Heater 2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C362

0.5

CABIN HEATER RELAY 2 CONTROL

N/A

Z936

DB/GN

1.5

GROUND

N/A

A284

10.0

FUSED B(+)

N/A

F286

10.0

FUSED CABIN HEATER 1 SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
