Relay-Cabin Heater 1 (Standard) Connector End View (D805A)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 2-953615-2

Part Description: Not Available

Connector No: D805A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Cabin Heater 1 Connector End View (Standard)

Courtesy of CHRYSLER

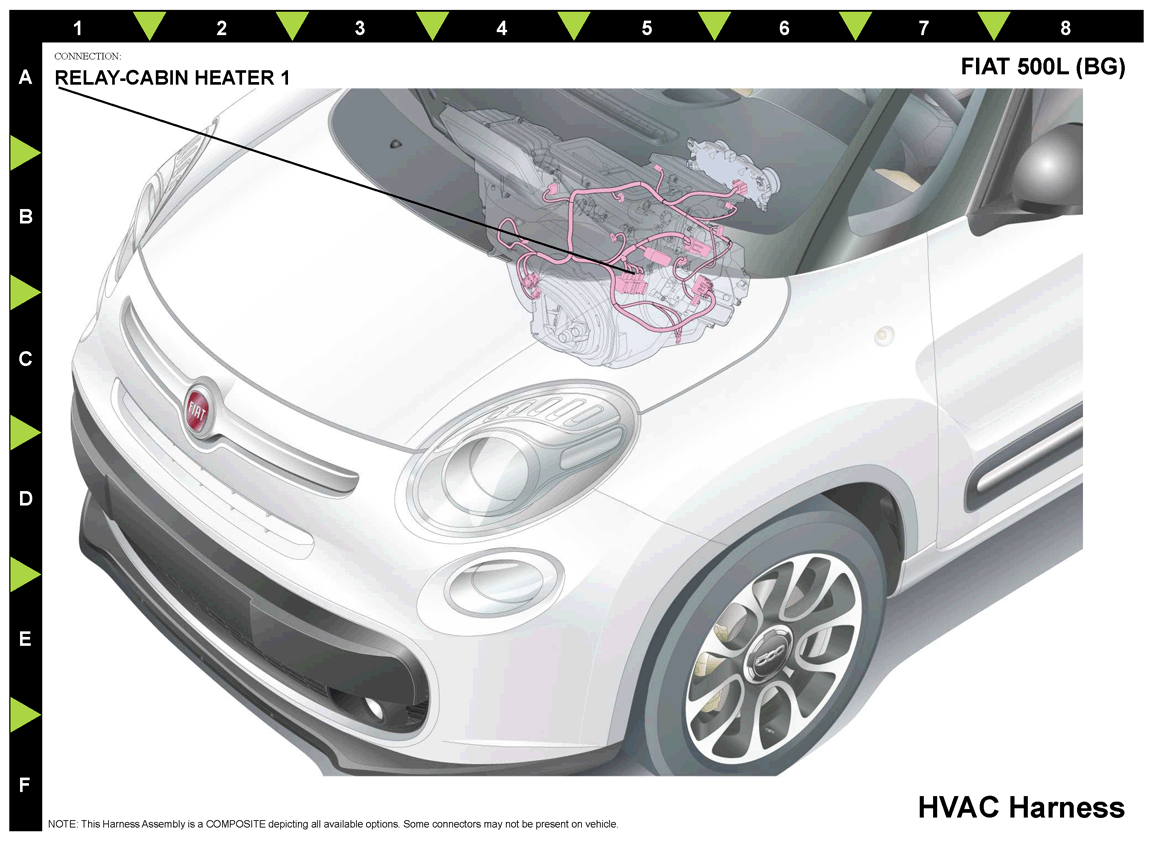

Fig 2: Relay-Cabin Heater 1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C361

0.5

CABIN HEATER RELAY 1 CONTROL

N/A

Z936

WH/BK

1.5

GROUND

N/A

A283

4.0

FUSED B(+)

N/A

F285

4.0

FUSED CABIN HEATER 2 SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
