Mirror-Outside Rearview-Passenger (Standard) Connector End View (D6626A)

Harness-Family: Door_Front_Right

Color: BLACK

Gender: MALE

Part Number: 1/11471/97

Part Description: Not Available

Connector No: D6626A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Mirror-Outside Rearview-Passenger Connector End View (Standard)

Courtesy of CHRYSLER

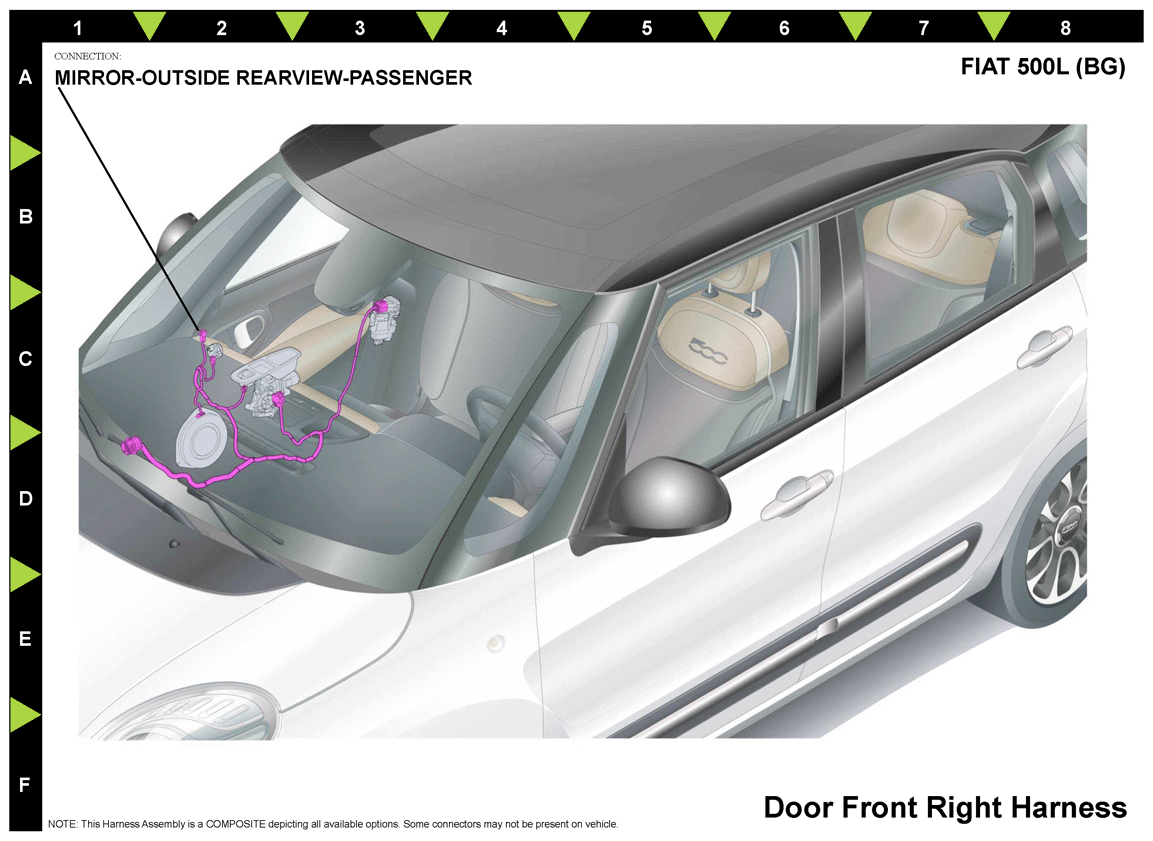

Fig 2: Mirror-Outside Rearview-Passenger Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C515

BN/BK

0.5

REAR WINDOW DEFOGGER RELAY OUTPUT

N/A

P74

GY/YE

0.35

PASSENGER MIRROR HORIZONTAL DRIVER

N/A

Z941

0.5

GROUND

N/A

G931

VT/GN

0.35

SENSOR GROUND

N/A

P76

GY/BK

0.35

MIRROR COMMON DRIVER

N/A

P72

GY/WH

0.35

PASSENGER MIRROR VERTICAL DRIVER

N/A

G31

BK/VT

0.35

AAT SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
