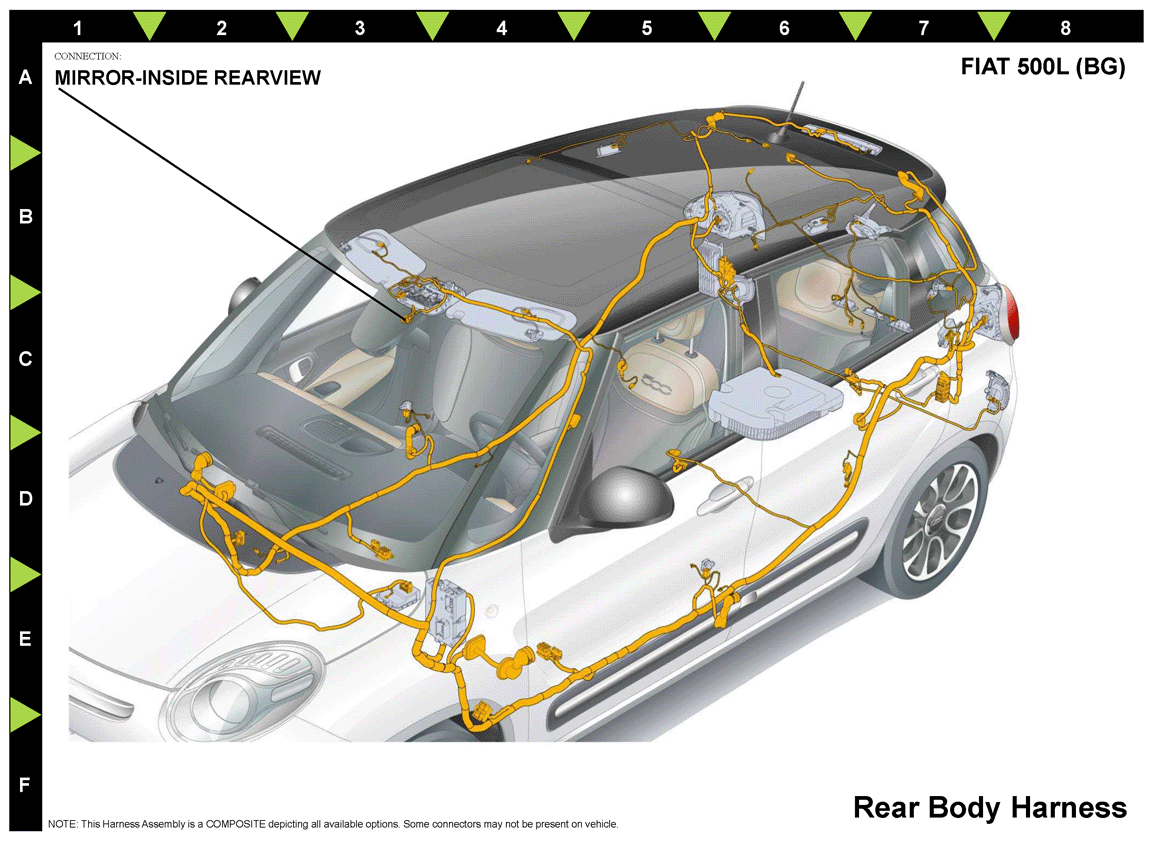

Mirror-Inside Rearview (Standard) Connector End View (D6625A)
Harness-Family: Body_Rear
Color: BLACK
Gender: FEMALE
Part Number: 1/08807/97
Part Description: Not Available
Connector No: D6625A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 5 | G39 | GN/BN | 0.35 | SUN SENSOR SIGNAL 1 | N/A | ||
| 7 | F989 | DB/WH | 0.35 | FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT | N/A | ||
| 8 | Z941 | BK | 0.35 | GROUND | N/A | ||
|
|||||||
