Latch-Door-Right Rear (Standard) Connector End View (D6618A)

Harness-Family: Door_Rear_Right

Color: BLACK

Gender: FEMALE

Part Number: 1/08359/87

Part Description: Not Available

Connector No: D6618A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Latch-Door-Right Rear Connector End View (Standard)

Courtesy of CHRYSLER

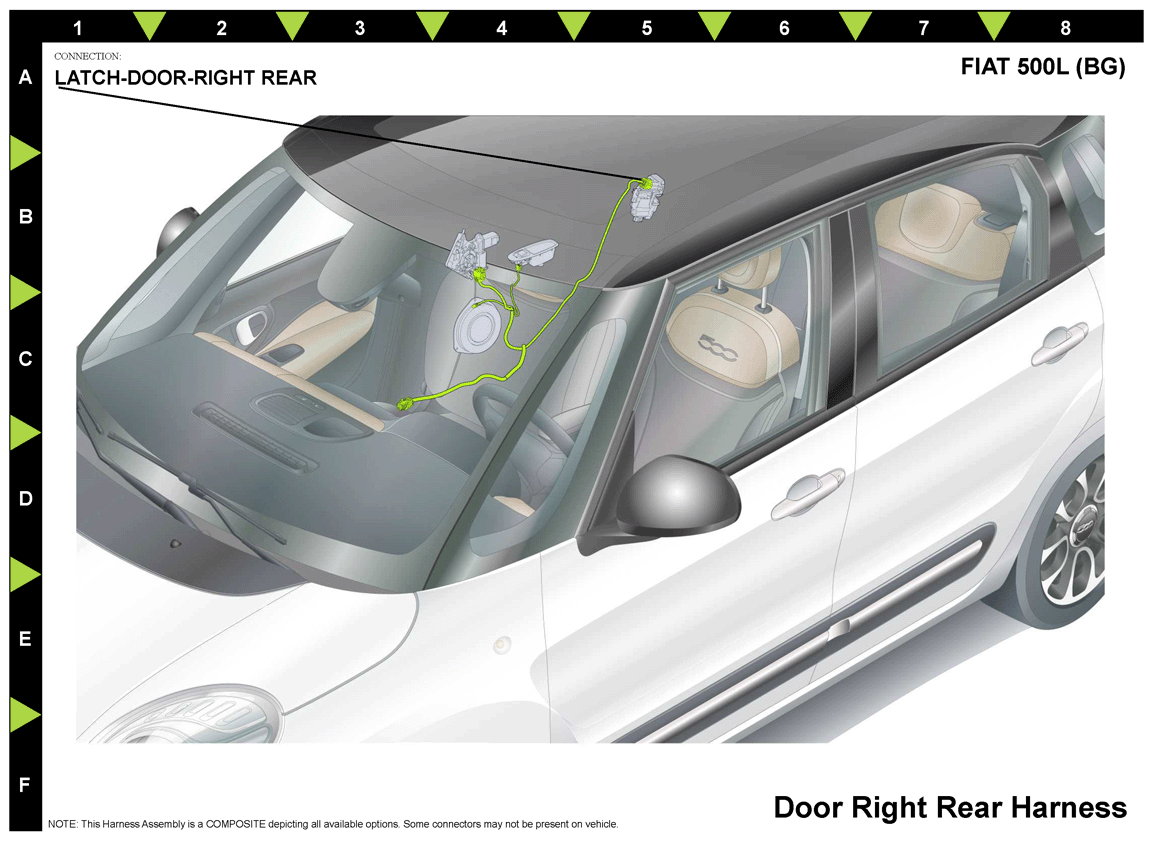

Fig 2: Latch-Door-Right Rear Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G261

VT/RD

0.35

DOOR LOCK SWITCH SIGNAL REAR RIGHT

N/A

Z924

0.5

GROUND

N/A

G76

WH/GN

0.35

RIGHT REAR DOOR AJAR SWITCH SENSE

N/A

P777

WH/BK

1.5

DOOR LOCK RELAY CONTROL

N/A

OG/GN

1.5

PASSENGER DOOR UNLOCK DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
