Lamp-Side Repeater-Right (Standard) Connector End View (D4576A)

Harness-Family: Body_Front

Color: BROWN

Gender: FEMALE

Part Number: 1/05880/98

Part Description: Not Available

Connector No: D4576A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Lamp-Side Repeater-Right Connector End View (Standard)

Courtesy of CHRYSLER

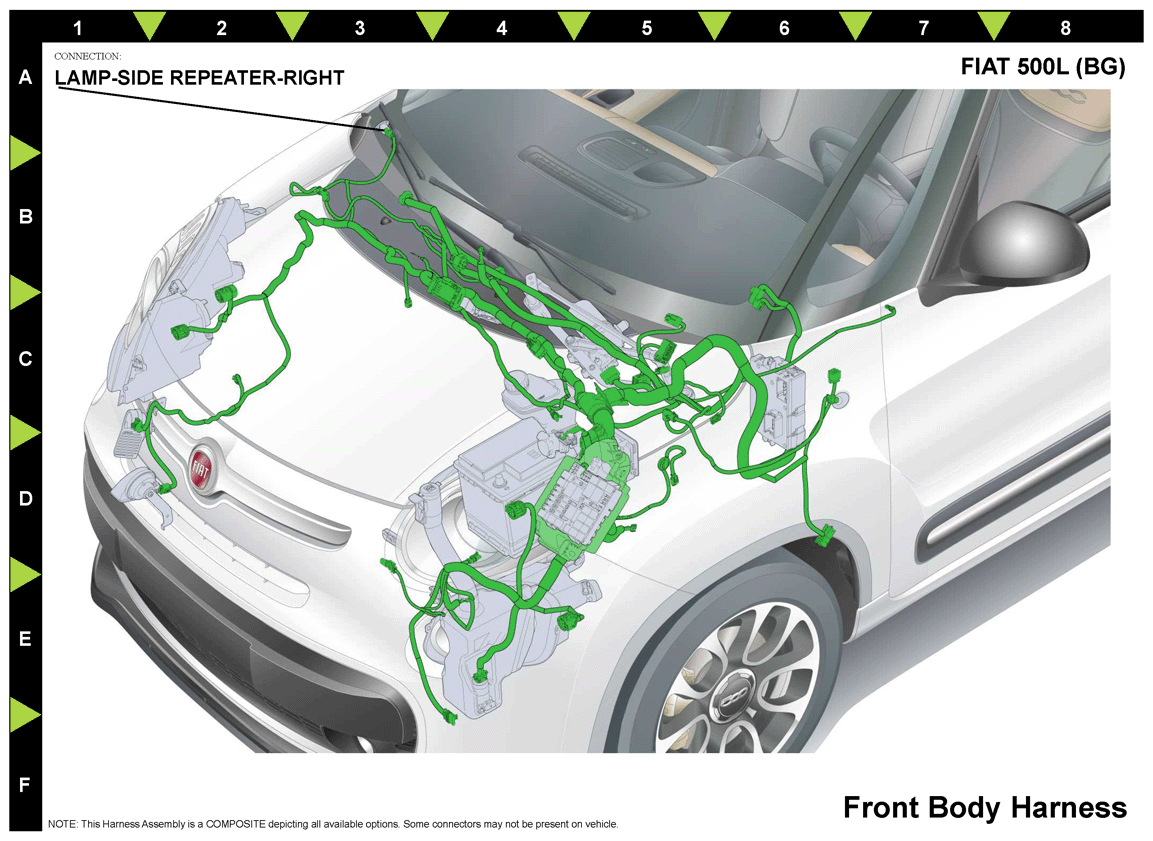

Fig 2: Lamp-Side Repeater-Right Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z910

0.35

GROUND

N/A

L162

DB/BK

0.35

RIGHT SIDE REPEATER LAMP CONTROL OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
