Lamp-Side Repeater-Left (Standard) Connector End View (D4575A)

Harness-Family: Body_Front

Color: BROWN

Gender: FEMALE

Part Number: 1/05880/98

Part Description: Not Available

Connector No: D4575A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Lamp-Side Repeater-Left Connector End View (Standard)

Courtesy of CHRYSLER

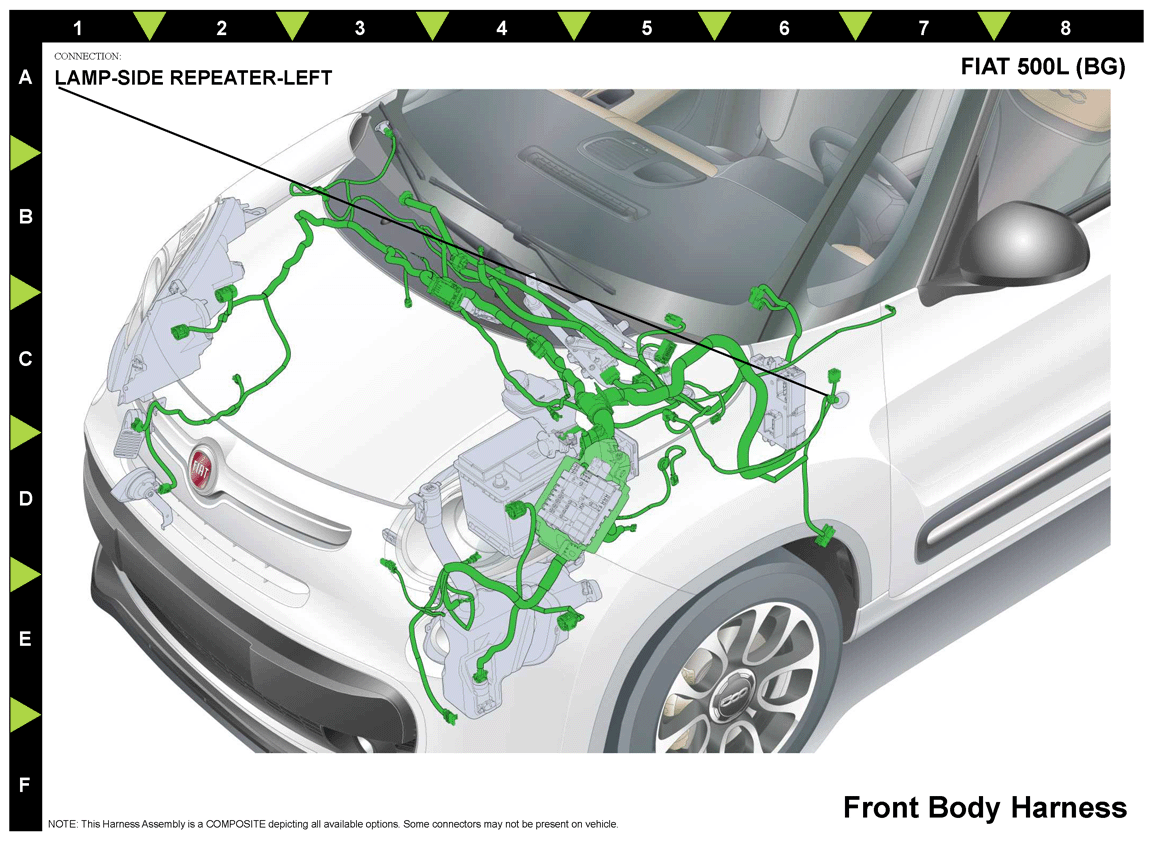

Fig 2: Lamp-Side Repeater-Left Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z910

0.35

GROUND

N/A

L163

DB/WH

0.35

LEFT SIDE REPEATER LAMP CONTROL OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
