Lamp-Dome (Except Sunroof) Connector End View (D4525A)

Harness-Family: Body_Rear

Color: NATURAL

Gender: FEMALE

Part Number: 1/10289/80

Part Description: Not Available

Connector No: D4525A

Option: EXCEPT SUNROOF

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Lamp-Dome Connector End View (EXCEPT SUNROOF)

Courtesy of CHRYSLER

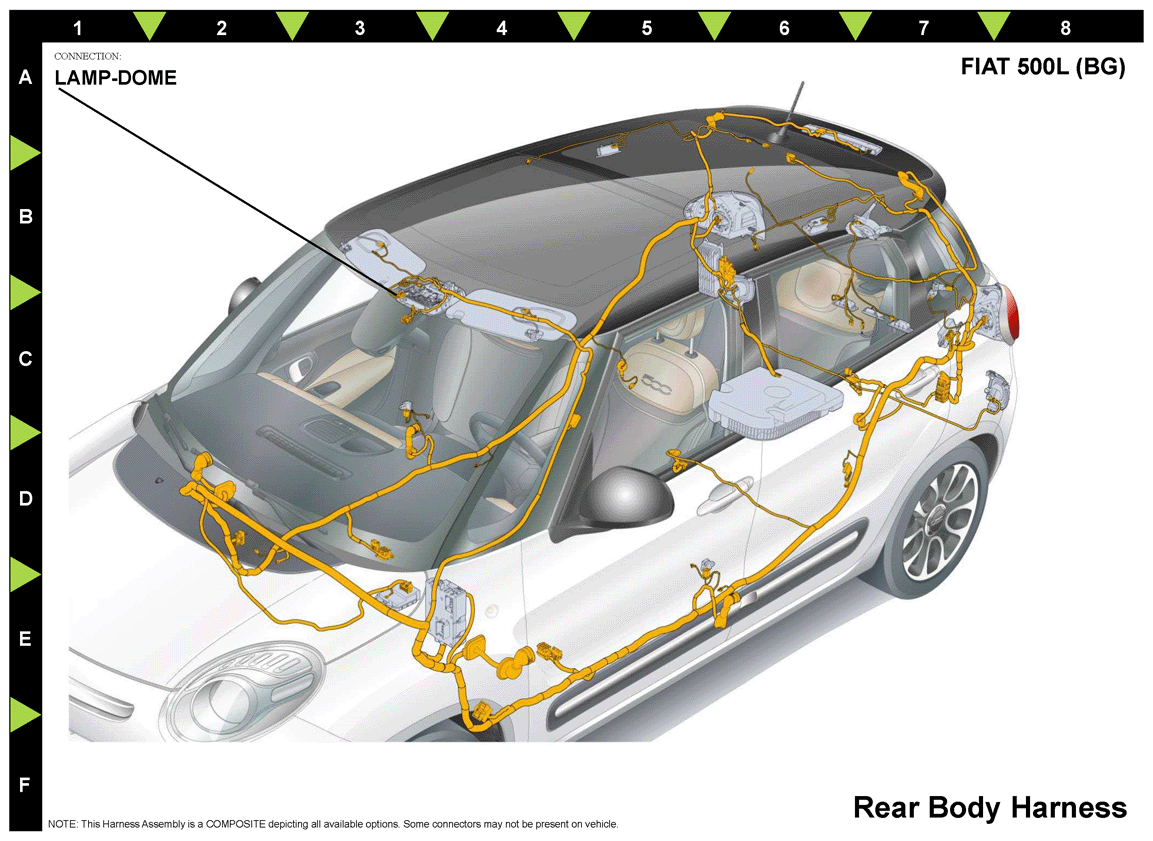

Fig 2: Lamp-Dome Component Location (EXCEPT SUNROOF)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z912

0.35

GROUND

N/A

M59

RD/BK

0.5

COURTESY LAMP FEED

N/A

M53

BN/VT

0.5

REAR DOME LAMP CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
