Heater-Seat Back-Left (Standard) Connector End View (D6735A)

Harness-Family: Seat_Left

Color: GRAY

Gender: MALE

Part Number: 1/10115/86

Part Description: Not Available

Connector No: D6735A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Heater-Seat Back-Left Connector End View (Standard)

Courtesy of CHRYSLER

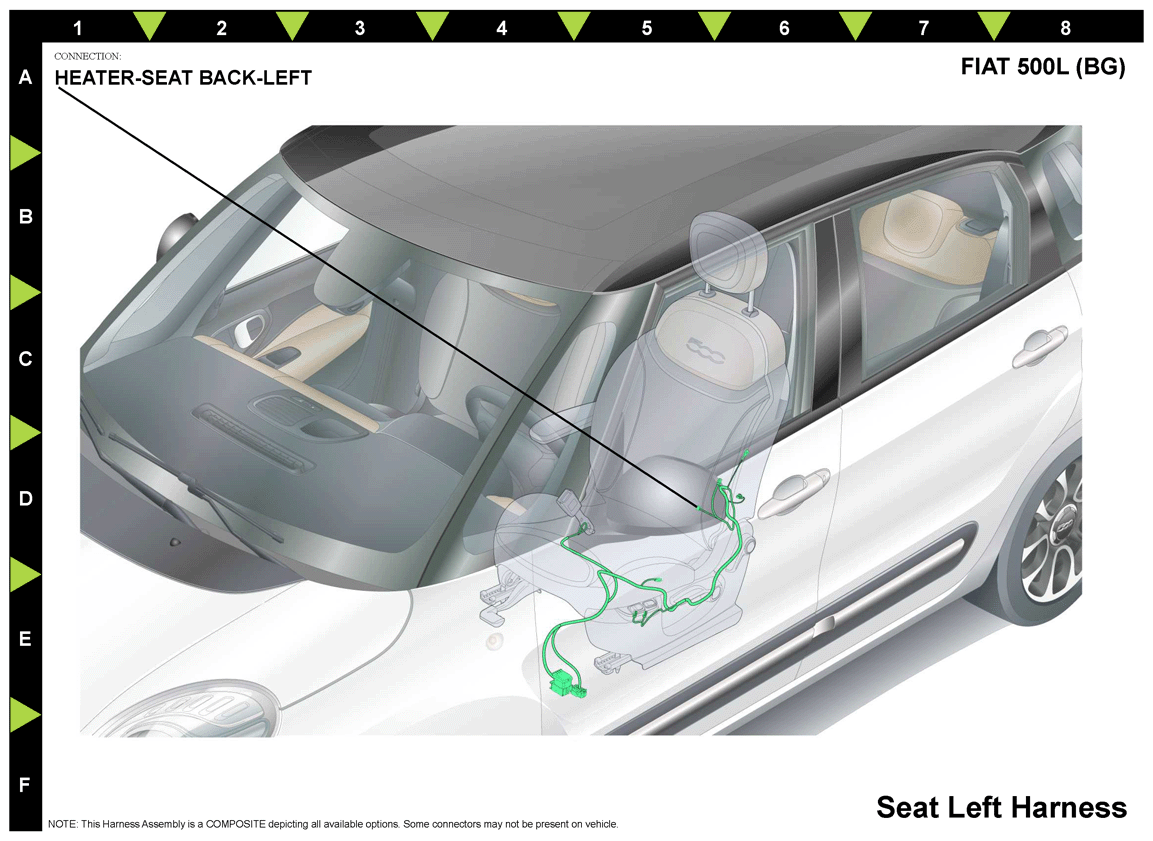

Fig 2: Heater-Seat Back-Left Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P289

GY/BK

1.0

LEFT FRONT SEAT HEATER CONTROL

N/A

Z912

1.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
