Heater-Cabin (Standard) Connector End View (D6715A)

Harness-Family: HVAC

Color: null

Gender: FEMALE

Part Number: 1544133-1

Part Description: Not Available

Connector No: D6715A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

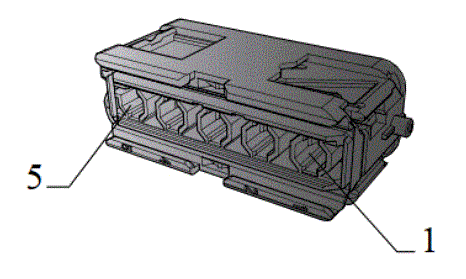

Fig 1: Heater-Cabin Connector End View (Standard)

G00663661

Courtesy of CHRYSLER

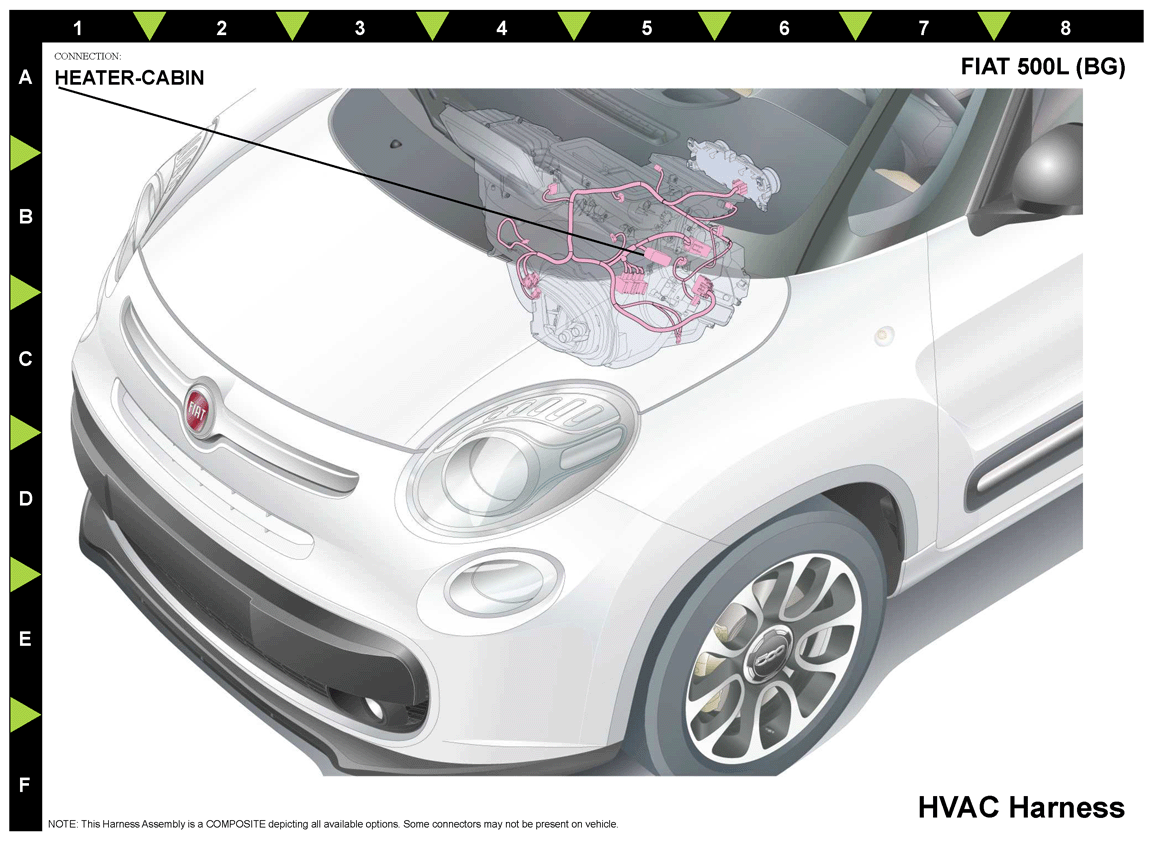

Fig 2: Heater-Cabin Component Location (Standard)

GCWD1247046

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

F285

WH

4.0

FUSED CABIN HEATER 2 SUPPLY

N/A

2

Z935

BK

6.0

GROUND

N/A

3

F286

DB

10.0

FUSED CABIN HEATER 1 SUPPLY

N/A

4

Z936

BK

6.0

GROUND

N/A

5

F286

DB

10.0

FUSED CABIN HEATER 1 SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
