G3022A (Standard) Connector End View (G3022A)

Harness-Family: Body_Rear

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G3022A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G3022a Connector End View (Standard)

GCWD1013721

Courtesy of CHRYSLER

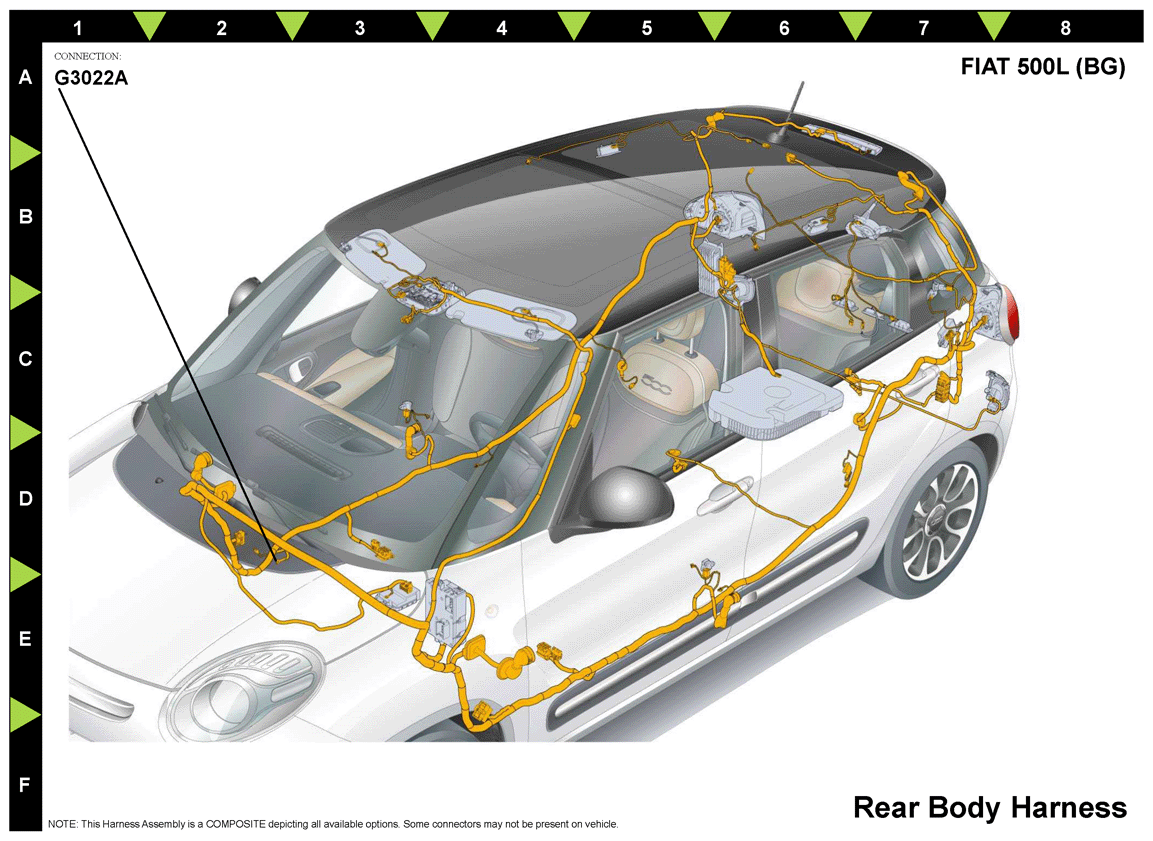

Fig 2: G3022a Component Location (Standard)

GCWD1247003

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z601

BK

0.5

GROUND

N/A

1

Z924

BK

0.35

GROUND

N/A

1

Z941

BK

0.5

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
