G2024A (Standard) Connector End View (G2024A)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: 1/10282/44

Part Description: Not Available

Connector No: G2024A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G2024a Connector End View (Standard)

Courtesy of CHRYSLER

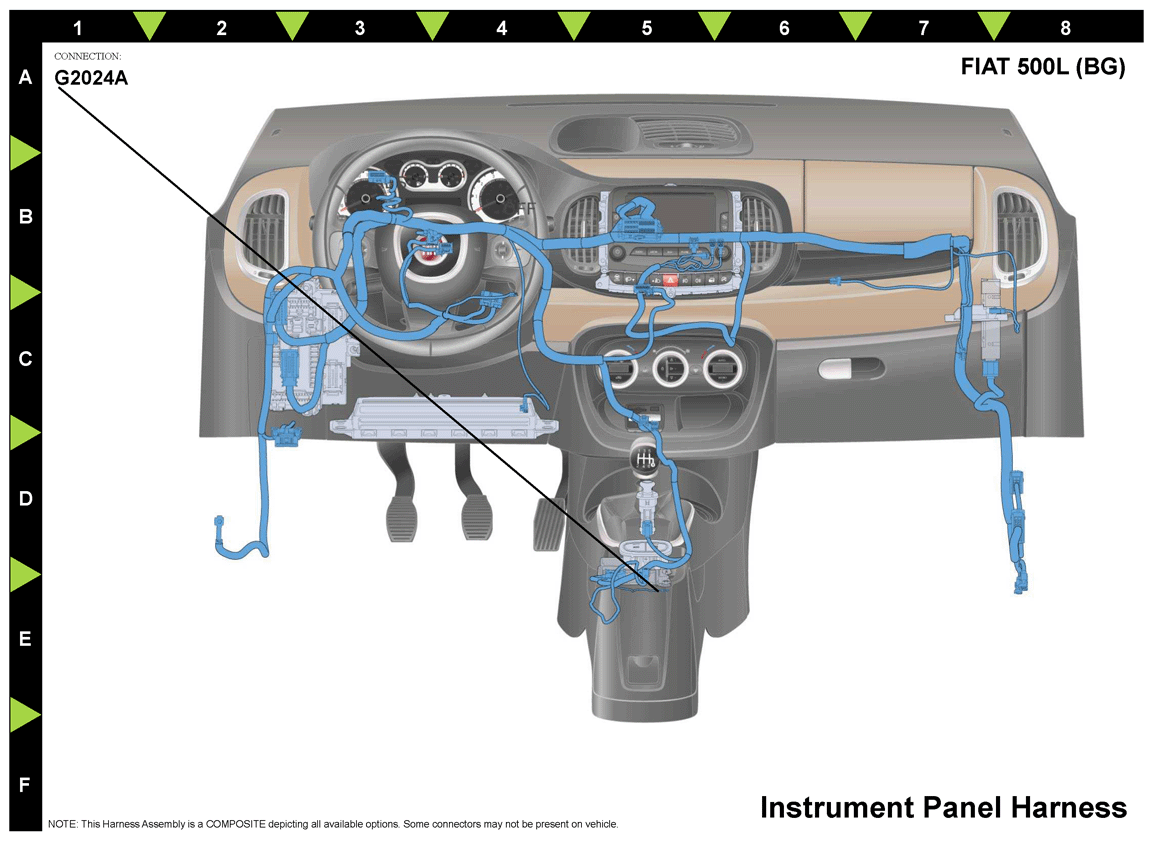

Fig 2: G2024a Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z104

0.5

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
