G2021B (Standard) Connector End View (G2021B)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: 1/10205/54

Part Description: Not Available

Connector No: G2021B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G2021b Connector End View (Standard)

Courtesy of CHRYSLER

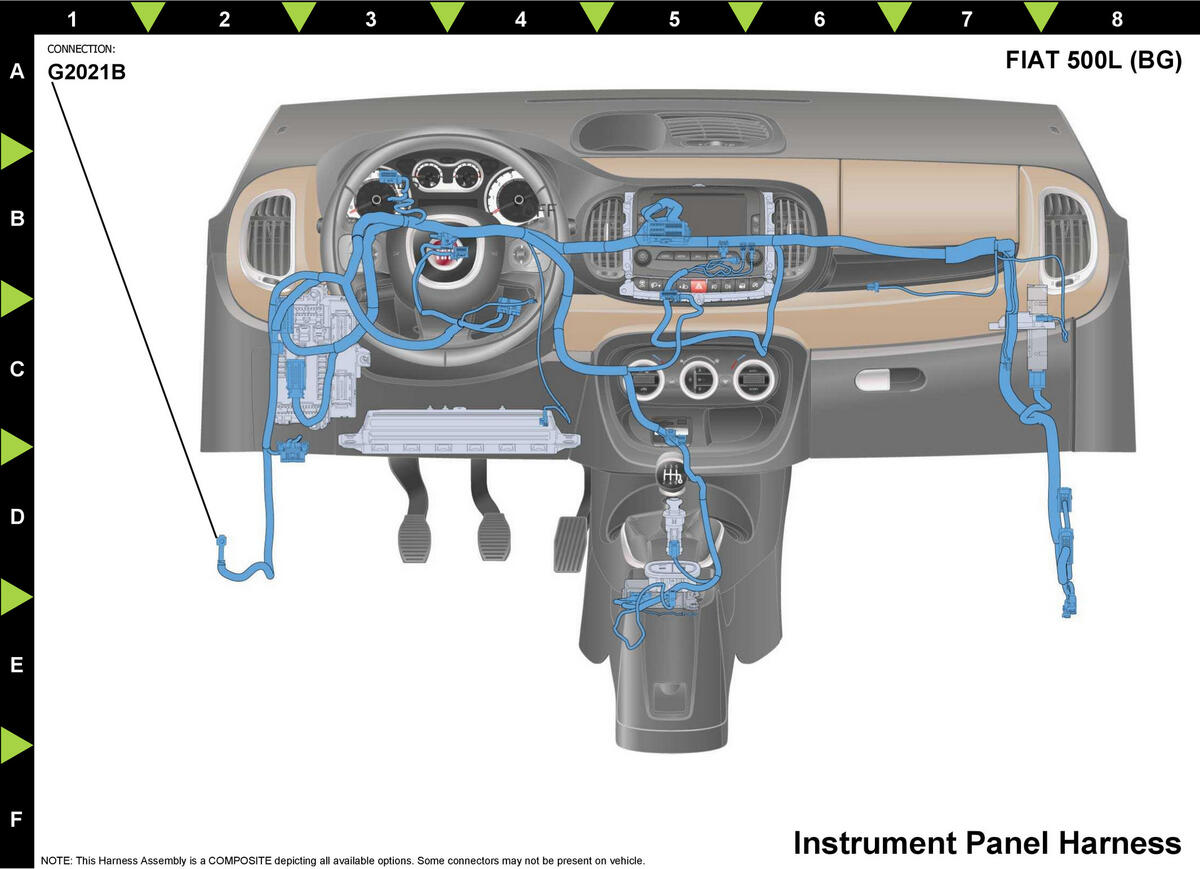

Fig 2: G2021b Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z921

1.5

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
