Coil-Ignition 2 (Standard) Connector End View (D5205A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 10757469

Part Description: Not Available

Connector No: D5205A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Coil-Ignition 2 Connector End View (Standard)

Courtesy of CHRYSLER

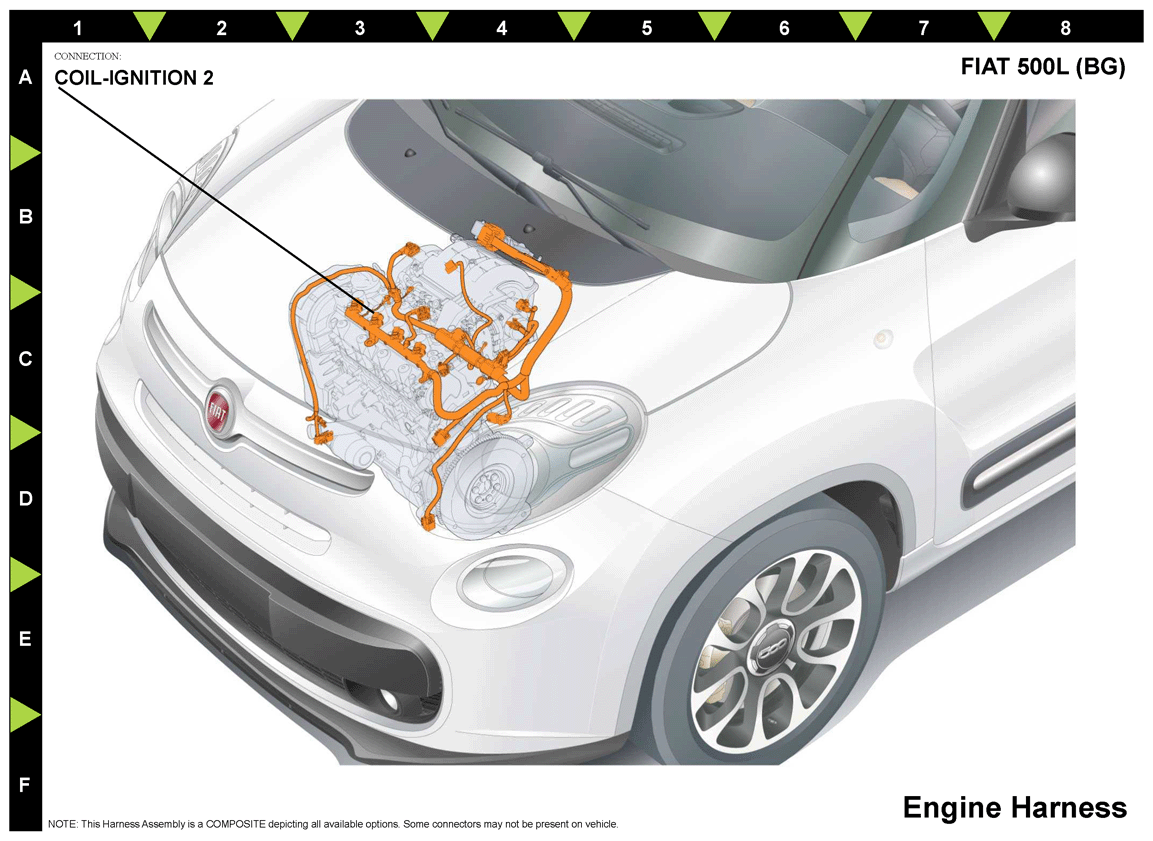

Fig 2: Coil-Ignition 2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z908

BK/VT

0.75

GROUND

N/A

F343

DB/RD

0.75

FUSED ASD RELAY OUTPUT

N/A

K17

YE/RD

0.75

COIL CONTROL 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
