Battery (-) (Standard) Connector End View (D7400B)

Harness-Family: Battery_Negative

Color: NA

Gender: FEMALE

Part Number: 1/10856/94

Part Description: Not Available

Connector No: D7400B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Battery (-) Connector End View (Standard)

Courtesy of CHRYSLER

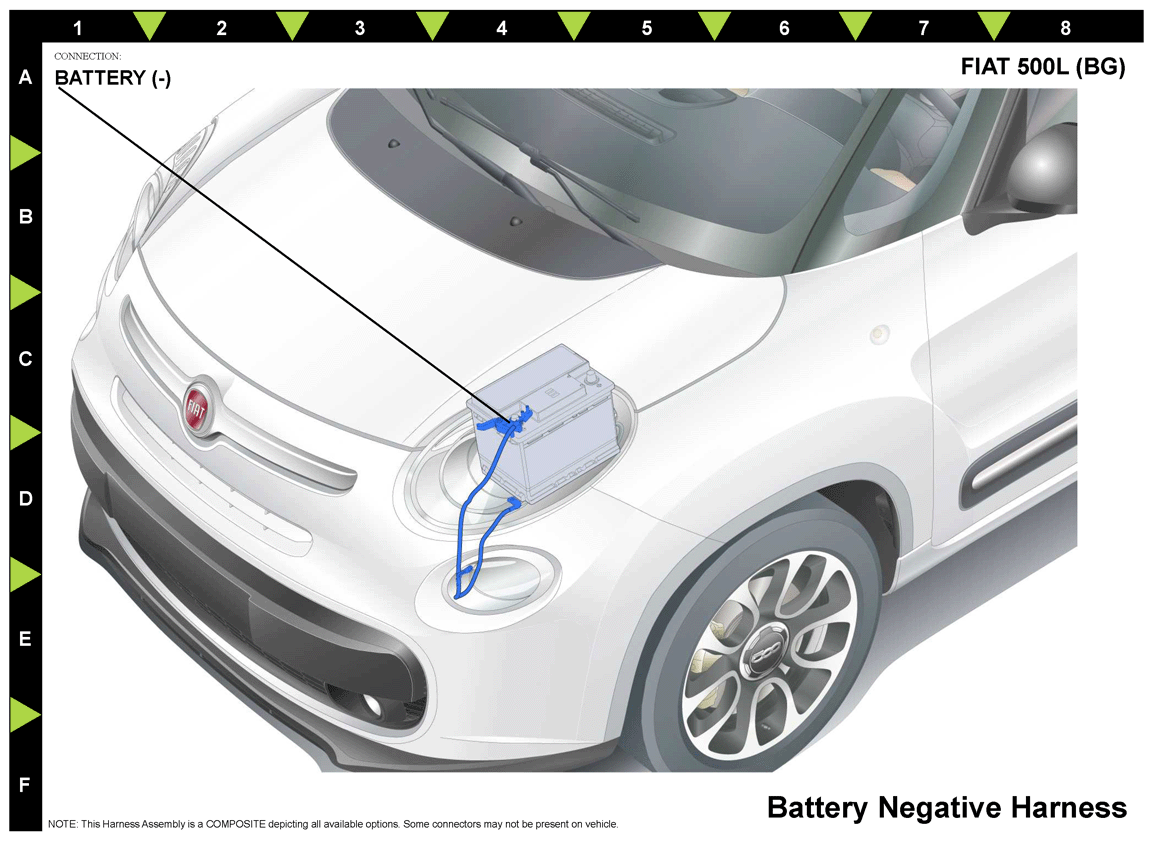

Fig 2: Battery (-) Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z901

35.0

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
