Battery (+) (Standard) Connector End View (D7400A)

Harness-Family: Battery_Positive

Color: NA

Gender: FEMALE

Part Number: 1/10859/94

Part Description: Not Available

Connector No: D7400A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

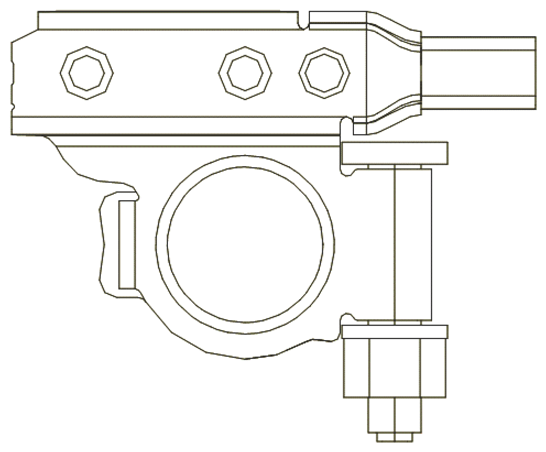

Fig 1: Battery (+) Connector End View (Standard)

Courtesy of CHRYSLER

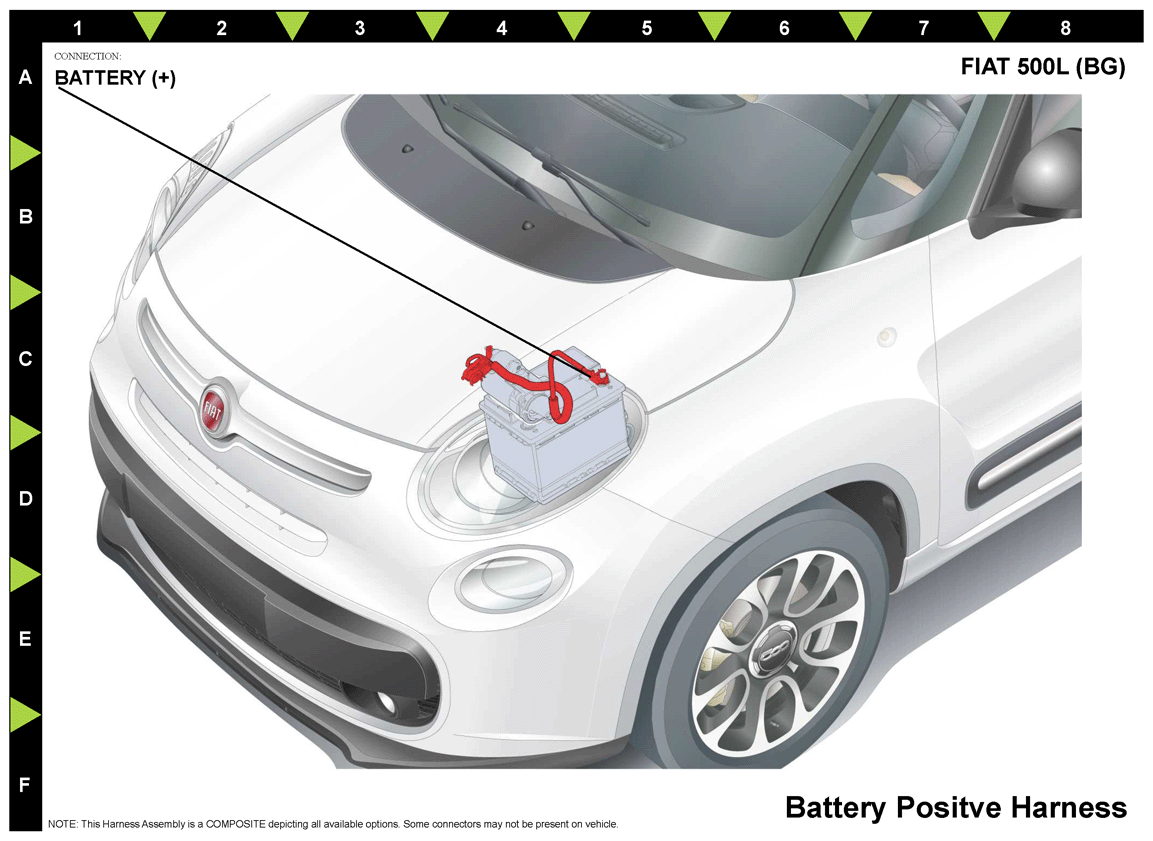

Fig 2: Battery (+) Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

35.0

B(+)

N/A

35.0

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
