Actuator-Blend Door-Right (Standard) Connector End View (D54A)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 1355082-1

Part Description: Not Available

Connector No: D54A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Actuator-Blend Door-Right Connector End View (Standard)

Courtesy of CHRYSLER

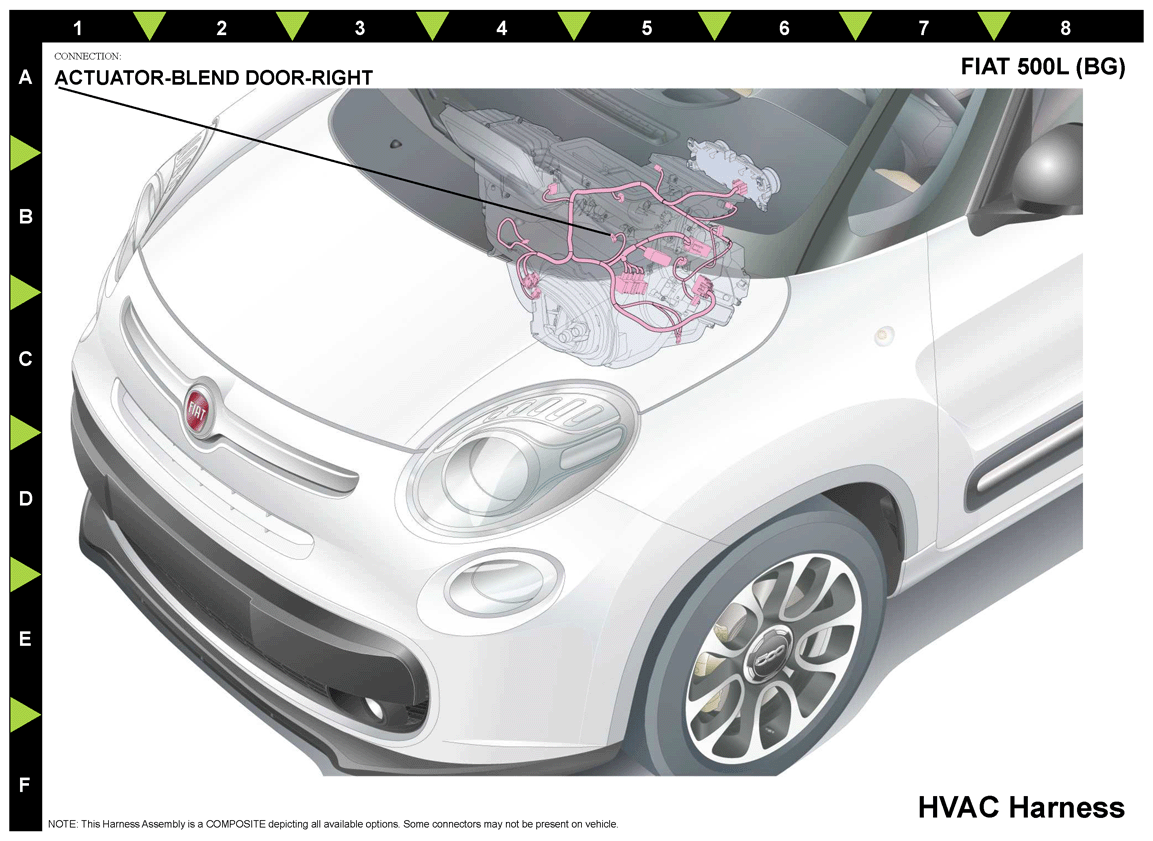

Fig 2: Actuator-Blend Door-Right Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C121

BK/VT

0.35

SENSOR GROUND

N/A

C224

WH/BK

0.35

RIGHT BLEND DOOR SIGNAL

N/A

C807

WH/GN

0.35

5 VOLT SUPPLY

N/A

C138

GN/BK

0.35

RIGHT BLEND DOOR DRIVER 2

N/A

C136

YE/BK

0.35

RIGHT BLEND DOOR DRIVER 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
