Seat Belt-Retractor TENSIONER-Passenger (Standard) Connector End View (D6676A)

Harness-Family: Body_Rear

Color: BLACK

Gender: FEMALE

Part Number: 1/07137/07

Part Description: Not Available

Connector No: D6676A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

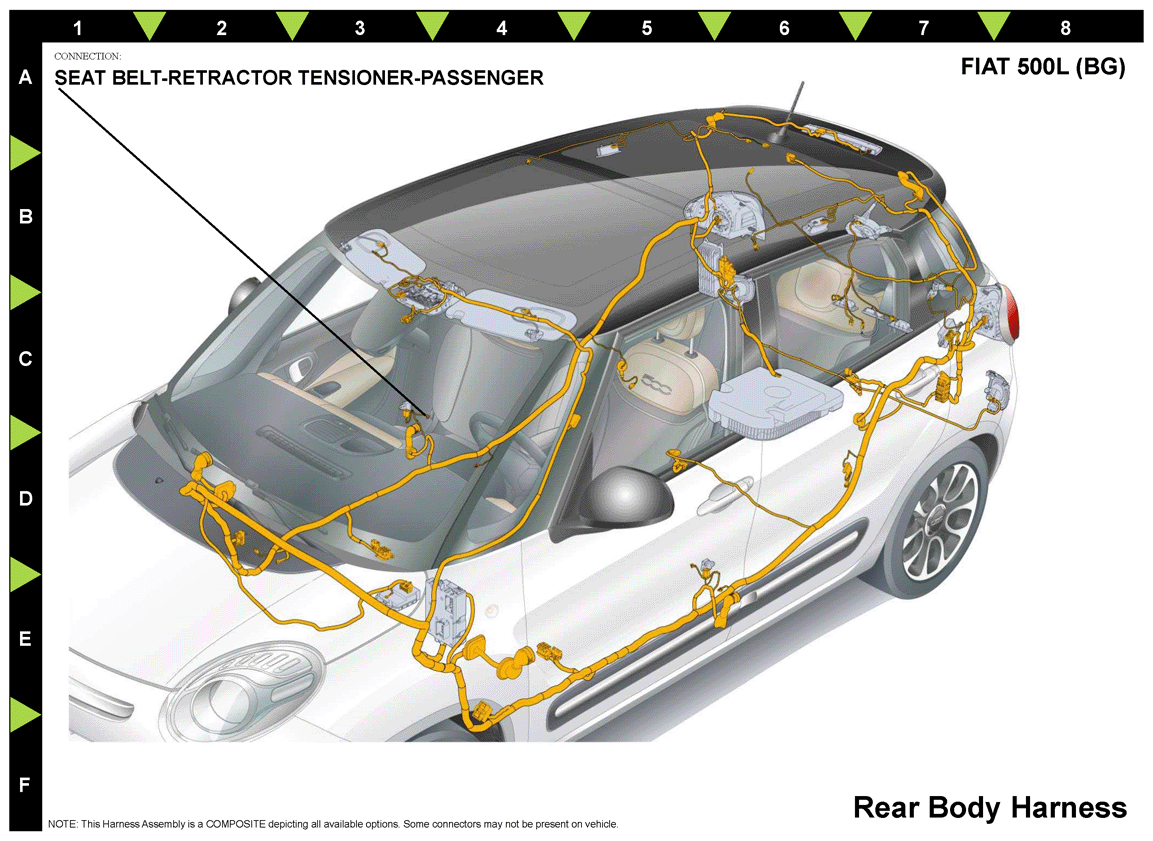

Fig 1: Seat Belt-Retractor Tensioner-Passenger Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R506

WH/DB

0.5

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R504

WH/BK

0.5

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
