Seat Belt-Retractor TENSIONER-Driver (Standard) Connector End View (D6673A)

Harness-Family: Body_Rear

Color: BLACK

Gender: FEMALE

Part Number: 1/07137/97

Part Description: Not Available

Connector No: D6673A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Seat Belt-Retractor Tensioner-Driver Connector End View (Standard)

Courtesy of CHRYSLER

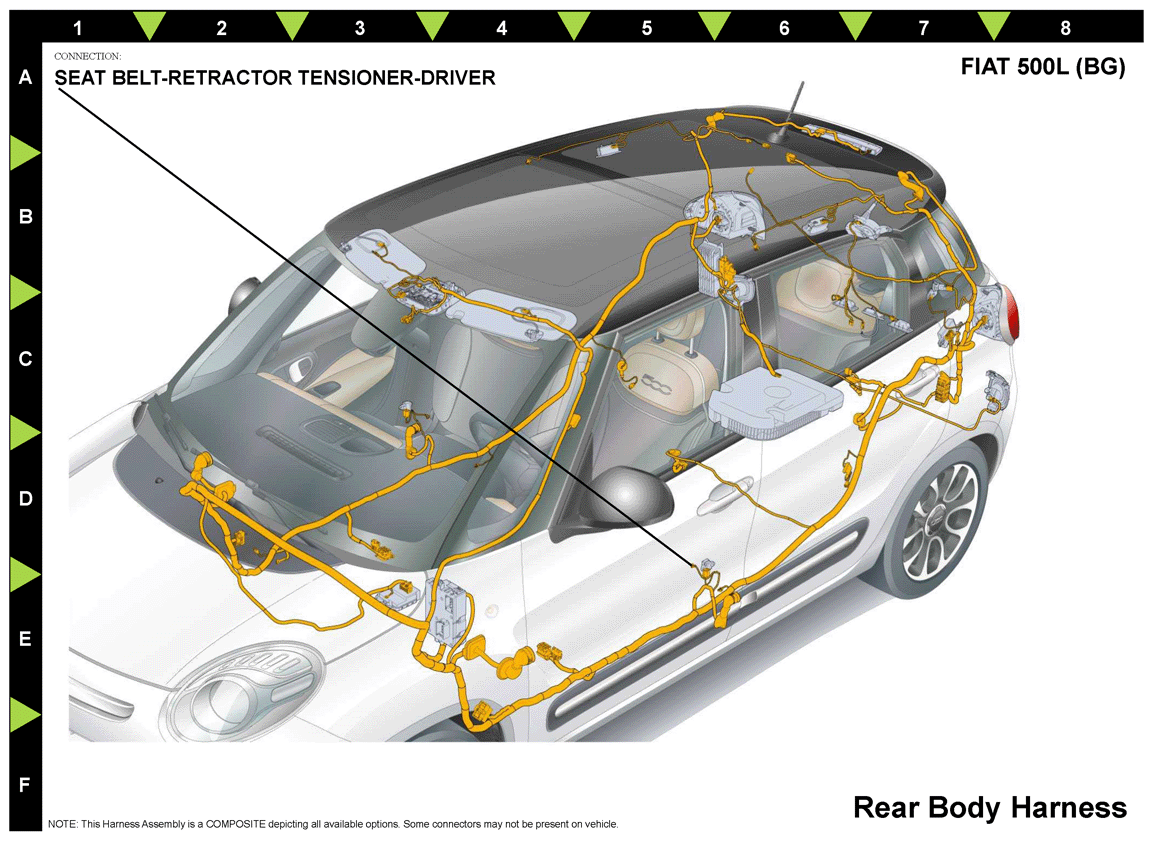

Fig 2: Seat Belt-Retractor Tensioner-Driver Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R503

DB/GN

0.5

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R505

DB/BK

0.5

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
