Seat Belt-Buckle TENSIONER-Passenger (Standard) Connector End View (D6746A)

Harness-Family: Body_Rear

Color: YELLOW

Gender: FEMALE

Part Number: 1/32500/91

Part Description: Not Available

Connector No: D6746A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Seat Belt-Buckle Tensioner-Passenger Connector End View (Standard)

Courtesy of CHRYSLER

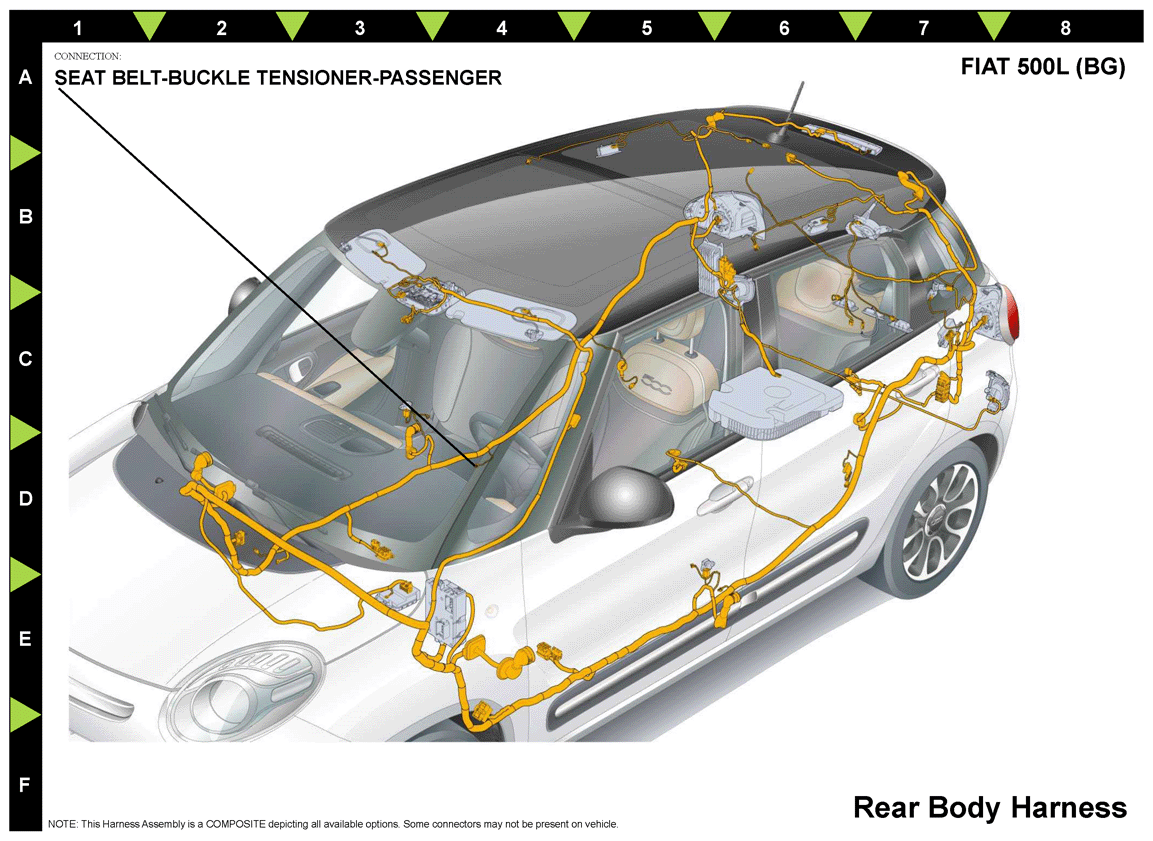

Fig 2: Seat Belt-Buckle Tensioner-Passenger Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R280

0.5

PASENGER SEAT BELT TENSIONER LINE 1

N/A

R279

GY/BK

0.5

PASSENGER SEAT BELT TENSIONER LINE 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
