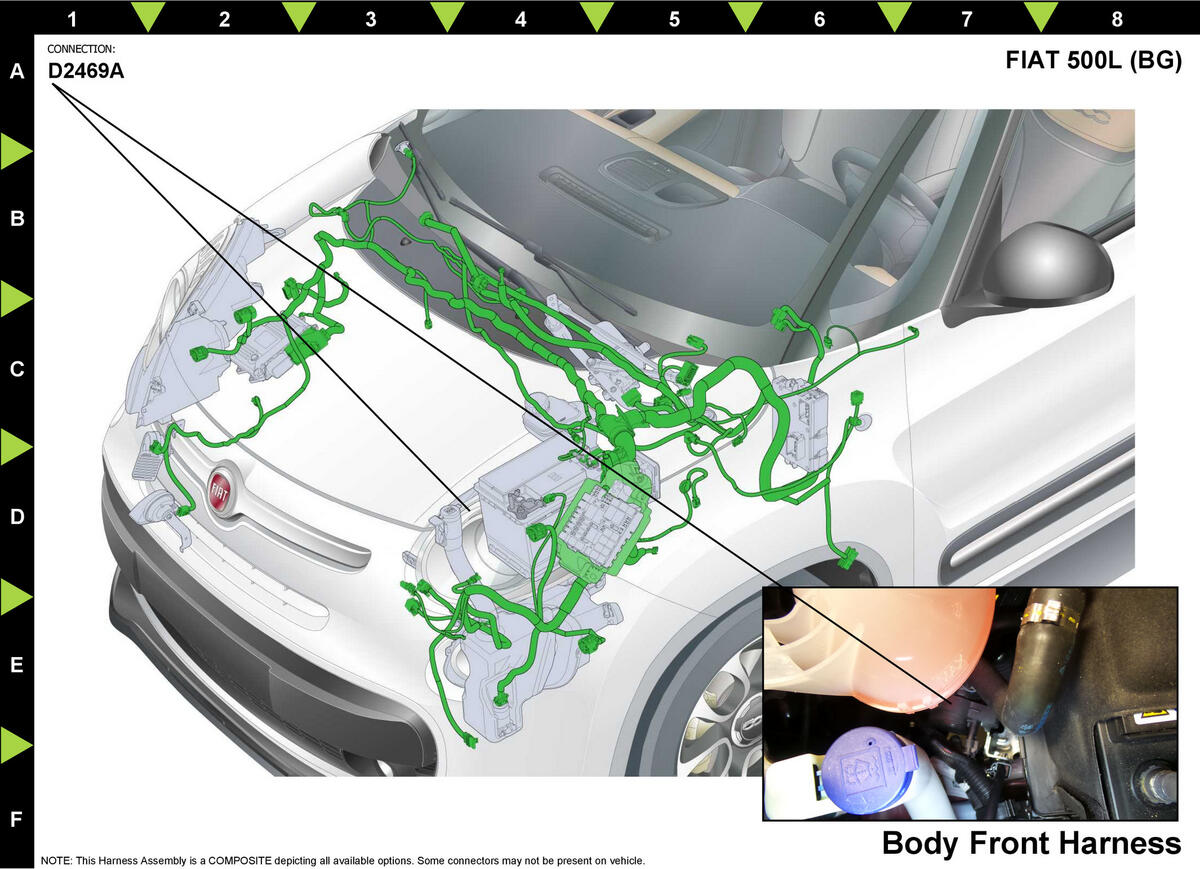

Pump-Auxiliary Coolant (Standard) Connector End View (D2469A)
Harness-Family: Body_Front
Color: BLACK
Gender: FEMALE
Part Number: 13872462
Part Description: Not Available
Connector No: D2469A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z909 | BK | 0.5 | GROUND | N/A | ||
| 2 | K548 | RD/GN | 0.5 | ELECTRIC COOLANT PUMP OUTPUT | N/A | ||
| 3 | D333 | GN | 0.5 | ELECTRIC COOLANT PUMP SIGNAL | N/A | ||
|
|||||||
